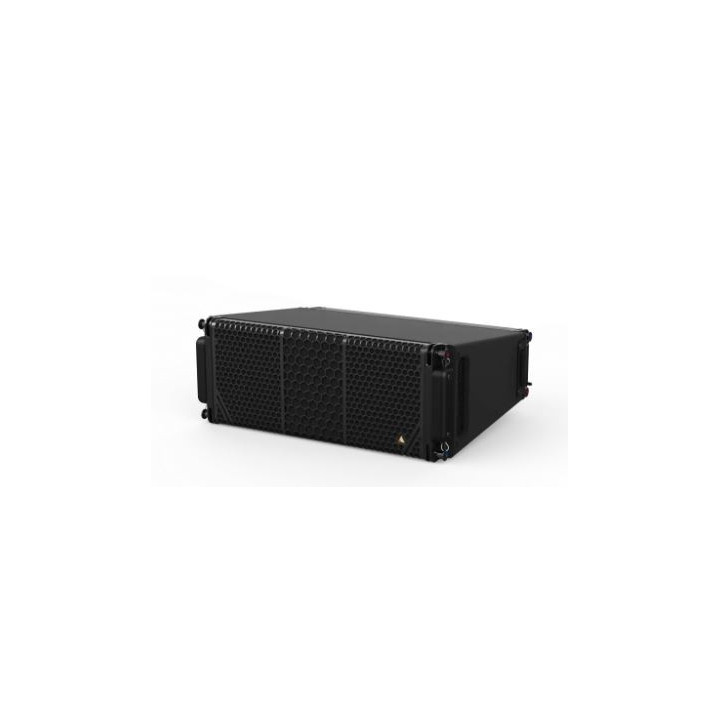

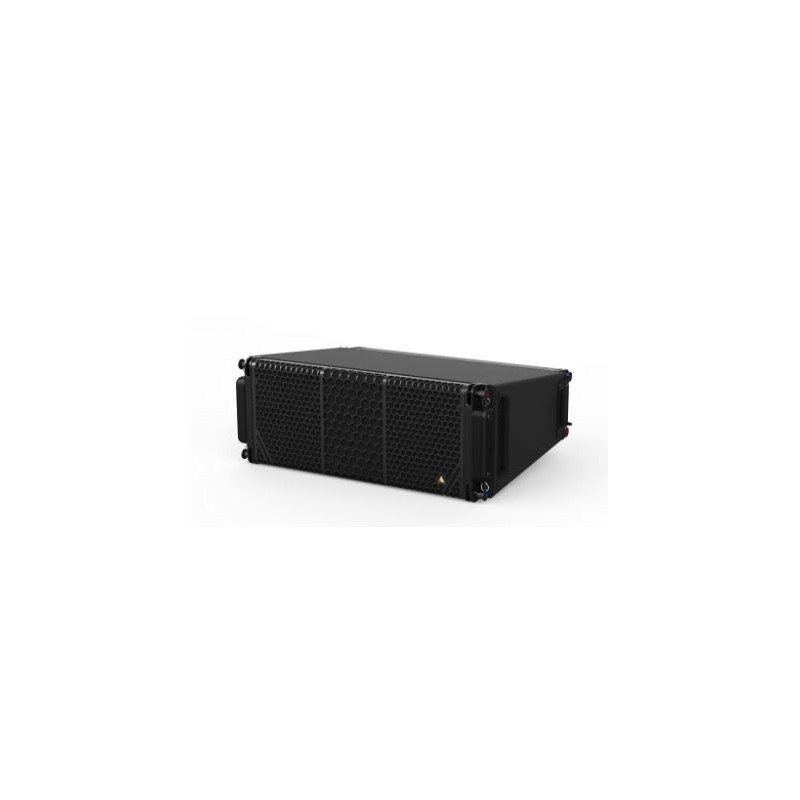

ADAMSON CS7 - CS Intelligent Loudspeaker
1087883
Sorgente lineare ultra-compatta intelligente: 2 vie, MF - 2x 7" ND7-LM16, HF - 1x 3" NH3-8, sistema di rigging SlideLock, amplificazione classe D, endpoint di rete AVB, DSP
ADAMSON CS7 - CS Intelligent Loudspeaker Specs
| Frequency Range (+/-3 dB) | 80 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 100° x 12.5° |
| Maximum Peak SPL** | 138 dB |
| Components LF | 2x ND7-LM16 7” Kevlar® Neodymium Driver |
| Components HF | Adamson NH3 3” Diaphragm / 1.4” Exit Compression Driver |
| Rigging | Slidelock Rigging System |
| Connection | Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR |
| Height Front (mm / in) | 203 / 8 |
| Height Back (mm / in) | 122 / 4.8 |
| Width (mm / in) | 527 / 20.75 |
| Depth (mm / in) | 411 / 16.2 |
| Weight (kg / lbs) | 17.5 / 38.6 |
| Amplification | 2 channel Class-D, 2400 W total output |
| Input Voltage | 100 - 240 V |
| Current Draw at 230v | 0.45 A rms idle, 1.6 A rms long-term, 9 A max peak |
| Supported Processing | Onboard / Proprietary |
Sorgente lineare ultra-compatta intelligente: 2 vie, MF - 2x 7" ND7-LM16, HF - 1x 3" NH3-8, sistema di rigging SlideLock, amplificazione classe D, endpoint di rete AVB, DSP
