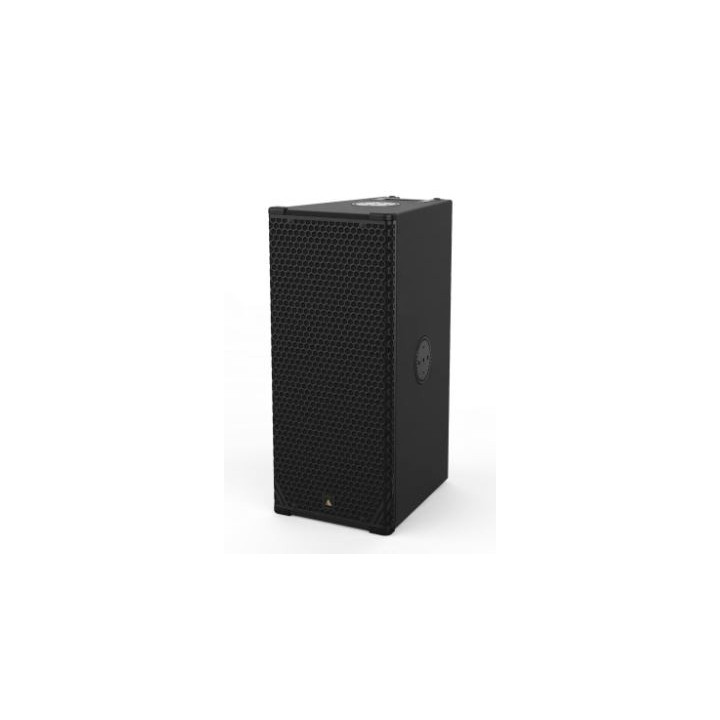

ADAMSON CS10p 100° x 50° - CS Intelligent Loudspeaker
1087889
Sorgente puntuale intelligente sub-compatta: 2 vie, MF - 2x 10" ND10-LM, HF - 1x 3" NH3-8, sistema di aggancio integrato e montaggio su asta, 100° x 50° (rotazione 90°), amplificazione Classe D, endpoint di rete AVB, DSP
ADAMSON CS10p 100 x 50 Specs
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 70° x 40° or 100° x 50° |
| Maximum Peak SPL** | 139 dB |
| Components LF | 2x ND10-LM 10” Kevlar Neodymium Driver |
| Components HF | Adamson NH3 3” Diaphragm / 1.4” Exit Compression Driver |
| Rigging | Integrated Rigging System Built-in Polemount Socket |
| Connection | Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR |
| Height Front (mm / in) | 744 / 29.29 |
| Width (mm / in) | 744 / 29.29 |
| Depth (mm / in) | 444.5 / 17.5 |
| Weight (kg / lbs) | 30 / 66.2 |
| Amplification | 2 channel Class-D, 2400 W total output |
| Input Voltage | 100 - 240 V |
| Current Draw at 230v | 0.45 A rms idle, 1.6 A rms long-term, 10 A max peak |
| Supported Processing | Onboard / Proprietary |
Sorgente puntuale intelligente sub-compatta: 2 vie, MF - 2x 10" ND10-LM, HF - 1x 3" NH3-8, sistema di aggancio integrato e montaggio su asta, 100° x 50° (rotazione 90°), amplificazione Classe D, endpoint di rete AVB, DSP
