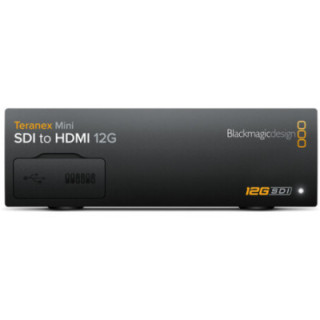

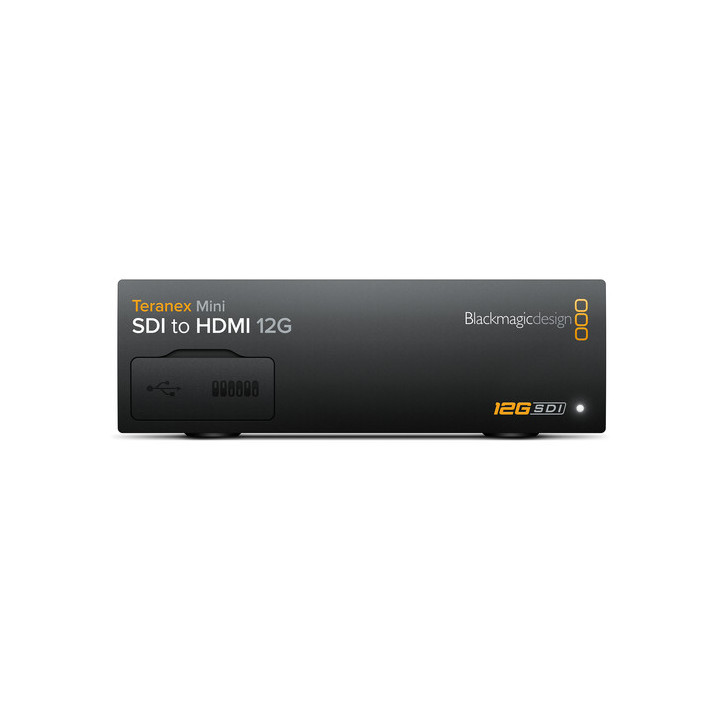

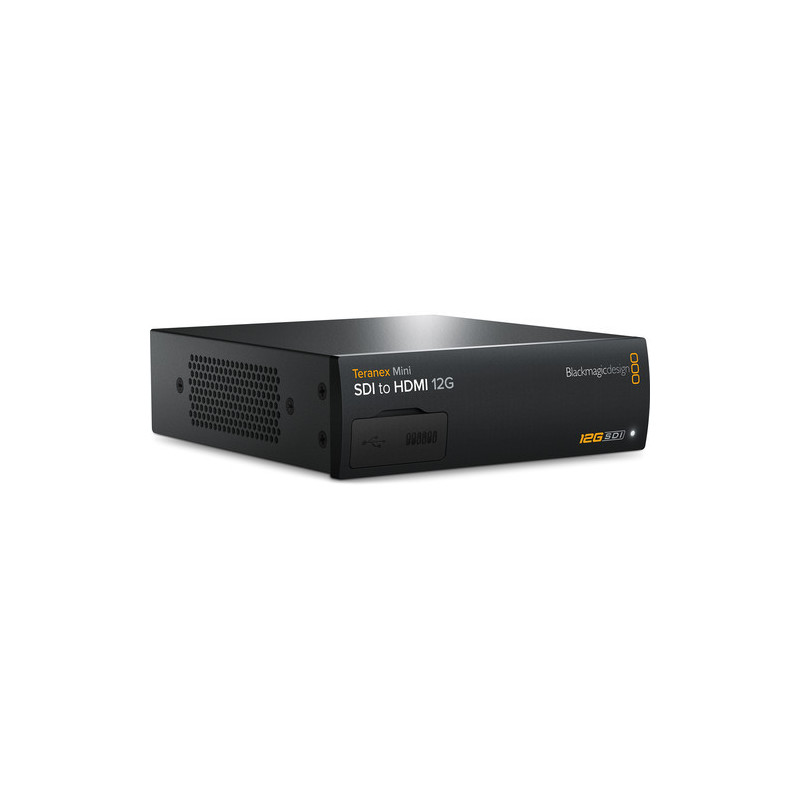

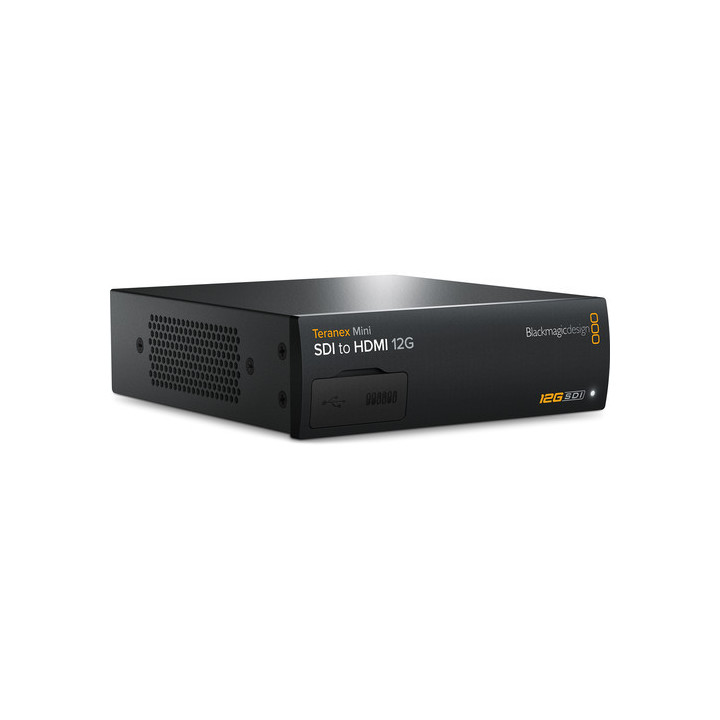

Blackmagic - Teranex Mini - SDI to HDMI 12G
Blackmagic BM-CONVNTRM-AA-SDIH - Teranex Mini - SDI to HDMI 12G
84533_NEW
9338716003246
- Produit neuf
Teranex Mini - SDI vers HDMI 12G
Prix Visuals
440,92 CHF
HT
476,63 CHF TTC
Prix constructeur 469,06 CHF HT
6 pièce(s) en stock
-
Livraison
- Disponible, expédié aujourd'hui
-
Retrait en boutiques
- Genève, retrait disponible sous 1H
- Zurich, retrait disponible sous 24H
|
|
Specifications |
|

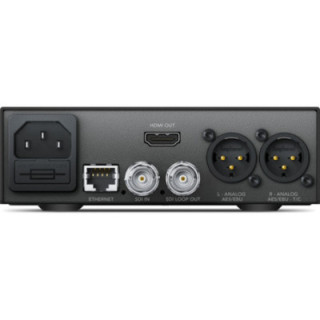

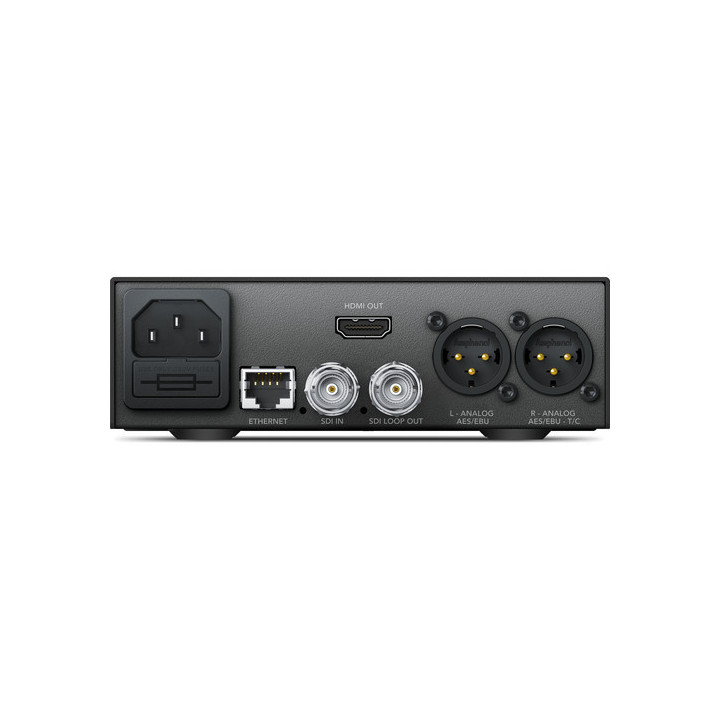

| Inputs/Outputs | ||
| Video Inputs | 1x BNC (12G-SDI) Female | |
| Audio Inputs | No | |
| Video Outputs | 1x HDMI (2.0a) 1x BNC (Loop Output) |
|
| Audio Outputs | 2x XLR 3-Pin Stereo AES/EBU Female | |
| Other I/O | 1x XLR 3-Pin Timecode Output (Shared With Right Audio XLR) 1x RJ45 Control, Firmware, PoE Input 1x Mini-USB Firmware Input |
|
| Expansion Slots | No | |
| Format Support | ||
| Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K at 23.98/24/25 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25 fps DCI 2KPsF at 23.98/24/25 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
|
| Output Video Format | HDMI (4:2:2 YUV) DCI 4K at 23.98/24/25 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
|
| Embedded Audio | HDMI/SDI: 8-Channel | |
| Standards | ||
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 | |
| HDR Support | Not Specified by Manufacturer | |
| Hardware | ||
| Wireless | No | |
| OS Compatibility | Windows 10 (64-Bit Only) macOS 10.15 to 11.1 or Later |
|
| Power | ||
| Power I/O | 1x IEC C14 (100 to 240 VAC ) Input | |
| PoE Support | PoE+ 802.3at | |
| Power Consumption | 16 W | |
| Environmental | ||
| Operating Temperature | 32 to 72°F / 0 to 40°C | |
| Storage Temperature | -4 to 140°F / -20 to 60°C | |
| Operating Humidity | 0 to 90% () | |
| General | ||
| Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm | |
| Weight | 1.28 lb / 581 g | |
| Packaging Info | ||
| Package Weight | 1.845 lb | |
| Box Dimensions (LxWxH) | 11.5 x 8.2 x 2.5" | |
