Blackmagic - Teranex Mini - SDI to HDMI 12G

Blackmagic BM-CONVNTRM-AA-SDIH - Teranex Mini - SDI a HDMI 12G

84533_NEW
9338716003246
  • Prodotto nuovo
Blackmagic BM-CONVNTRM-AA-SDIH - Teranex Mini - SDI a HDMI 12G
Blackmagic BM-CONVNTRM-AA-SDIH - Teranex Mini - SDI a HDMI 12G
Blackmagic BM-CONVNTRM-AA-SDIH - Teranex Mini - SDI a HDMI 12G
Blackmagic BM-CONVNTRM-AA-SDIH - Teranex Mini - SDI a HDMI 12G
Blackmagic BM-CONVNTRM-AA-SDIH - Teranex Mini - SDI a HDMI 12G
Blackmagic BM-CONVNTRM-AA-SDIH - Teranex Mini - SDI a HDMI 12G
Teranex Mini - SDI a HDMI 12G
... scopri di più
Prezzi Visuals
440,92 CHF IVA escl.

476,63 CHF IVA inclusa

Prezzo del produttore 469,06 CHF IVA escl.
6 pezzo/i in stock
  • Consegna
    • Disponibile, spedito oggi
  • Ritiro in negozio
    • Ginevra, ritiro disponibile entro 1 ora
    • Zurigo, ritiro disponibile entro 24 ore



Specifications

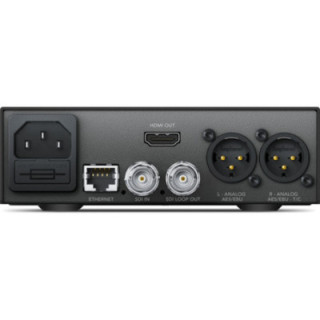

Inputs/Outputs
Video Inputs 1x BNC (12G-SDI) Female
Audio Inputs No
Video Outputs 1x HDMI (2.0a)
1x BNC (Loop Output)
Audio Outputs 2x XLR 3-Pin Stereo AES/EBU Female
Other I/O 1x XLR 3-Pin Timecode Output (Shared With Right Audio XLR)
1x RJ45 Control, Firmware, PoE Input
1x Mini-USB Firmware Input
Expansion Slots No
Format Support
Input Video Format SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K at 23.98/24/25 fps
DCI 2KPsF at 23.98/24/25 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Output Video Format HDMI (4:2:2 YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Embedded Audio HDMI/SDI: 8-Channel
Standards
Video Standard Compliance SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
HDR Support Not Specified by Manufacturer
Hardware
Wireless No
OS Compatibility Windows 10 (64-Bit Only)
macOS 10.15 to 11.1 or Later
Power
Power I/O 1x IEC C14 (100 to 240 VAC ) Input
PoE Support PoE+ 802.3at
Power Consumption 16 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% ()
General
Dimensions 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm
Weight 1.28 lb / 581 g
Packaging Info
Package Weight 1.845 lb
Box Dimensions (LxWxH) 11.5 x 8.2 x 2.5"
