Sony HDCU-3100 - Full IP capable Camera control Unit
12,102.12 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The HDCU-3100 Camera Control Unit adds IP capabilities to our comprehensive range of broadcast and studio system cameras, from the flagship 4K HDC-4300 camera to the HDC-2000/1700 series and HSC fibre system cameras.Connecting to compatible cameras via a fibre optic cable, the compact HDCU-3100 powers the camera, performs signal processing and provides an interface with external equipment. Combined with the optional HKCU-SFP30 board, designed for the SMPTE ST 2110 Professional Media Over Managed IP Network suite of standards, the HDCU-3100 Camera Control Unit supports essential functionality required for live IP production, including tally, intercom and return. By installing the optional HKCU-UHD30 4K/HDR processor board, the HDCU-3100 can deliver 4K signals when connected to an HDC series system camera. Furthermore, adding the optional HKCU-SDI30 12G-SDI Interface Kit enables 4K signal transfer via a single BNC cable.
Features:
Compact and Versatile
The 1.5 RU-sized Camera Control Unit creates an ideal standard 19-inch rack system for production areas with limited space.
IP Functionality for Live Production
The optional HKCU-SFP30 Interface Kit adds essential functionality required for live IP production such as Tally, Intercom and Return.
Eight Built-In SDI Outputs
The HDCU-3100 is equipped with eight built-in SDI outputs, including four 3G-SDI outputs. A built-in USB connector slot and 12G-SDI support will both be available in future updates.
4K Output Option
By installing an optional HKCU-UHD30 4K/HDR processor board, the HDCU-3100 can deliver 4K signals when connected to an HDC series system camera. Furthermore, the HDCU-3100 with an optional HKCU-SDI30 12G-SDI Interface Kit can transfer 4K signals via a single BNC cable.
Long-Distance High-Quality Signal Transmission
The fibre optic transmission system maintains high picture quality over cable lengths up to 2,000 m. Combined with the HKCU-SM30 Interface Kit, the compact HDCU-3100 can be connected directly on single-mode fibre (SMF) for long-distance transmission up to 10 km, making it ideal for space-constrained operations such as outside broadcast trucks.
|
|
Specification |
|
|
General |
|
|
|
Power Requirements |
100 V to 240 V AC, 50/60 Hz |
|
|
Current Consumption |
4.5 A (max.) |
|
|
Operating Temperature |
5°C to 40°C (41°F to 104°F) |
|
|
Storage Temperature |
–20°C to +60°C (–4°F to +140°F) |
|
|
Mass |
Approx. 7.3 kg (16 lb. 1.5 oz.) |
|
|

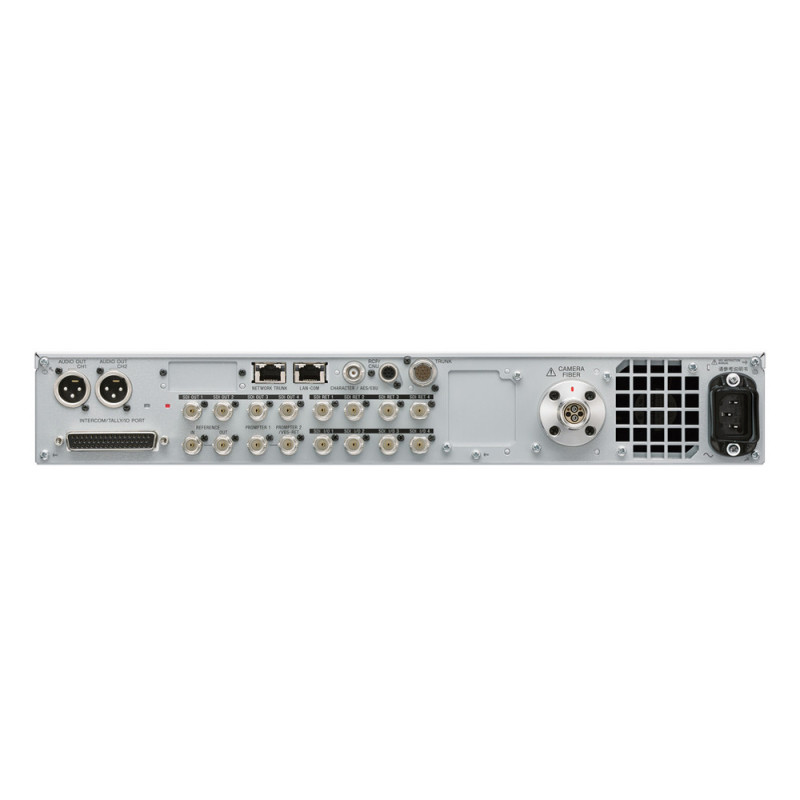

Input/Output Connectors |
|
|
|
Camera Fibre |
Optical Fibre Connector (x1) |
|
|
Intercom/Tally/Port Io |
50-pin D-sub Connector (x1) INTERCOM (PROD/ENG), 4 W: 0 dBu, RTS: 0 dBu, CC: –14 dBu PGM, 2 systems, 0dBu/–20dBu TALLY (R, G, Y) FLAG |
|
|
RCP/CNU |
8-pin Multi-pin Connector (x1) |
|
|
Trunk |
12-pin (x1) |
|
|
Lan-Com |
8-pin (x1) |
|
|
Network Trunk |
8-pin (x1) |
|
|
SDI I/O 1 to 4 |
3G/HD/SD SDI I/O BNC (x4) 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbit/s/2.967 Gbit/s HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbit/s/1.4835 Gbit/s SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbit/s 3G-SDI/HD-SDI/SD-SDI, selectable character signal |
|
|
Reference Input/Output |
BNC (x2), loop-through output HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) or NTSC 10F-BB |
|
|
Input Connectors |
|
|
|
AC Input |
100 V to 240 V AC (x1) |
|
|
SDI RET 1 to 4 |
BNC (x4) 3G-SDI: SMPTE ST424/425, 2.970 Gbit/s/2.967 Gbit/s HD-SDI: SMPTE ST292, 1.485 Gbit/s/1.4835 Gbit/s SD-SDI: SMPTE ST259, 270 Mbit/s |
|
|
Prompter 1 Prompter 2/VBS-RET |
BNC (x2), loop-through output in 1CH mode, internal 75 Ω termination in 2CH mode, analogue signal, 1.0 Vp-p, 75 Ω |
|
|
Output Connectors |
|
|
|
Audio Output Ch1, Ch2 |
XLR 3-pin, male (x2), 0dBu/–20 dBu/+4 dBu |
|
|
Character/ABS/EBU |
BNC (x1), VBS, 1 Vp-p, 75 Ω HD SYNC: BTA-S001, tri-level sync, 0.6 Vp-p, 75 Ω SD SYNC: composite sync, 0.3 Vp-p, 75 Ω VBS/HD SYNC/SD SYNC selectable |
|
|
SDI OUT 1 to 4 |
3G/HD/SD SDI OUTPUT BNC (x4) 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbit/s/2.967 Gbit/s HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbit/s/1.4835 Gbit/s SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbit/s 3G-SDI/HD-SDI/SD-SDI, selectable character signal |
