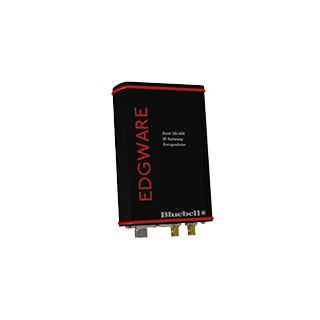

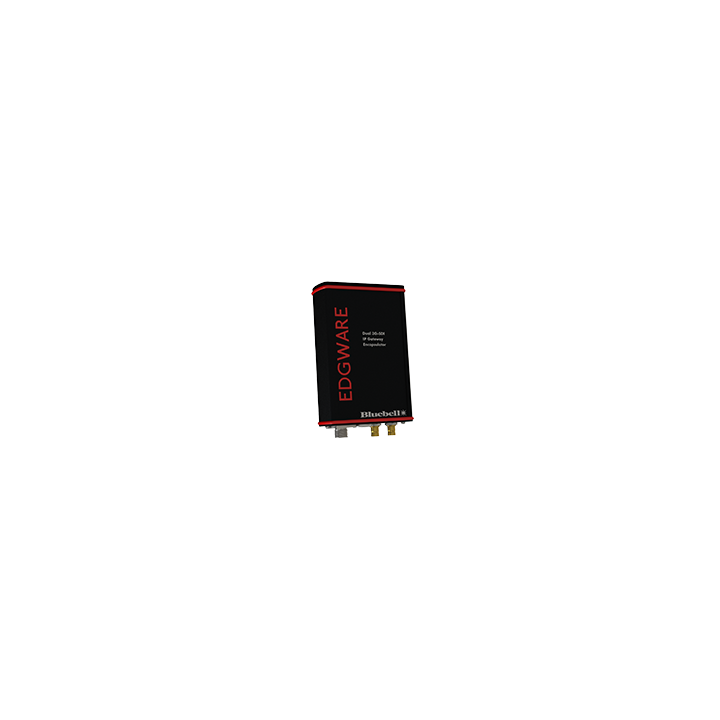

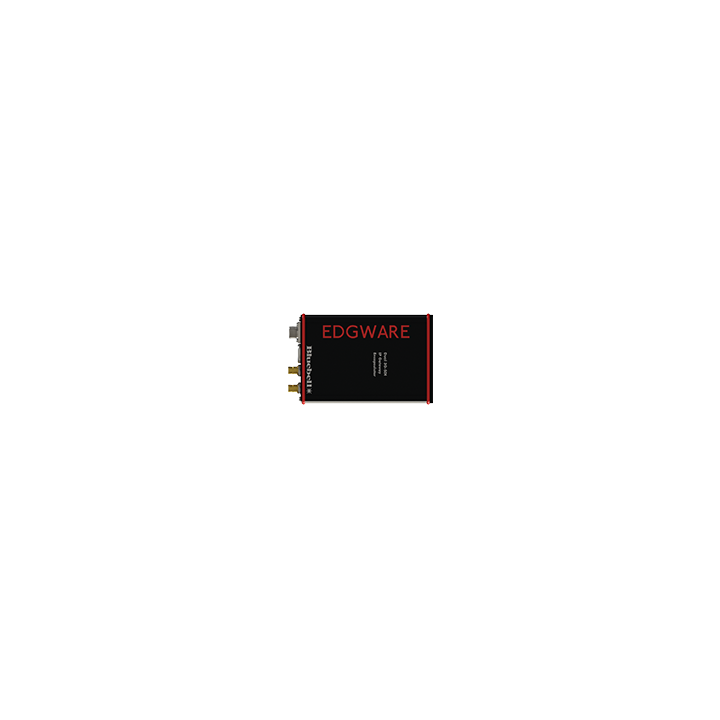

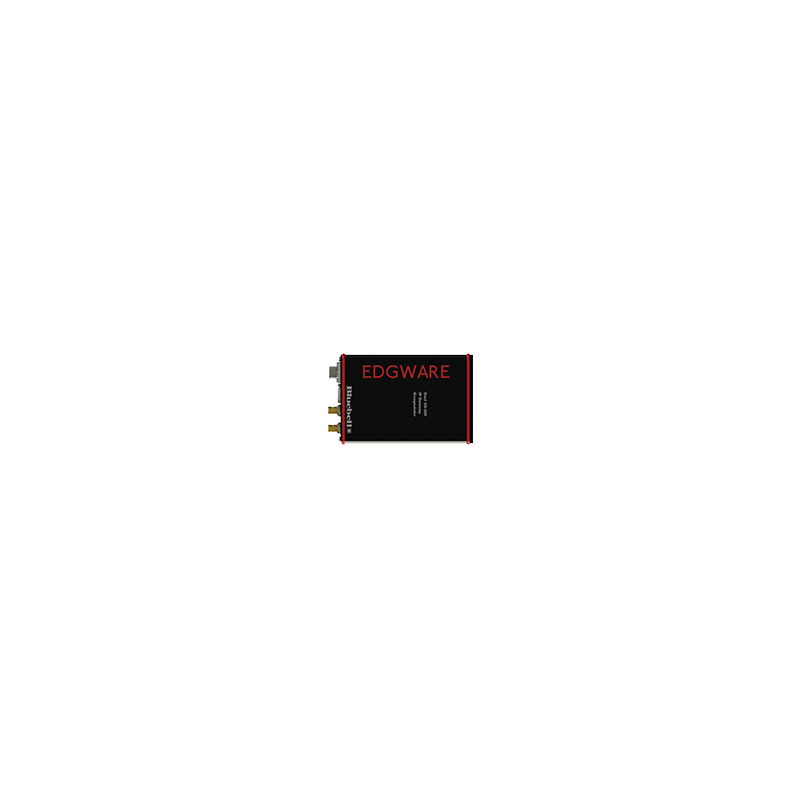

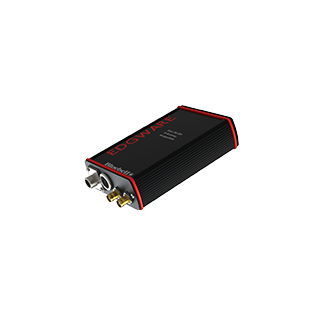

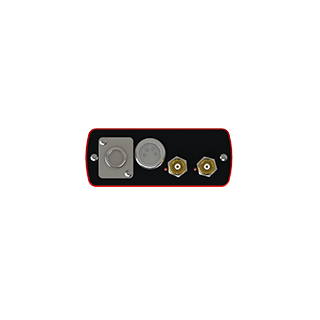

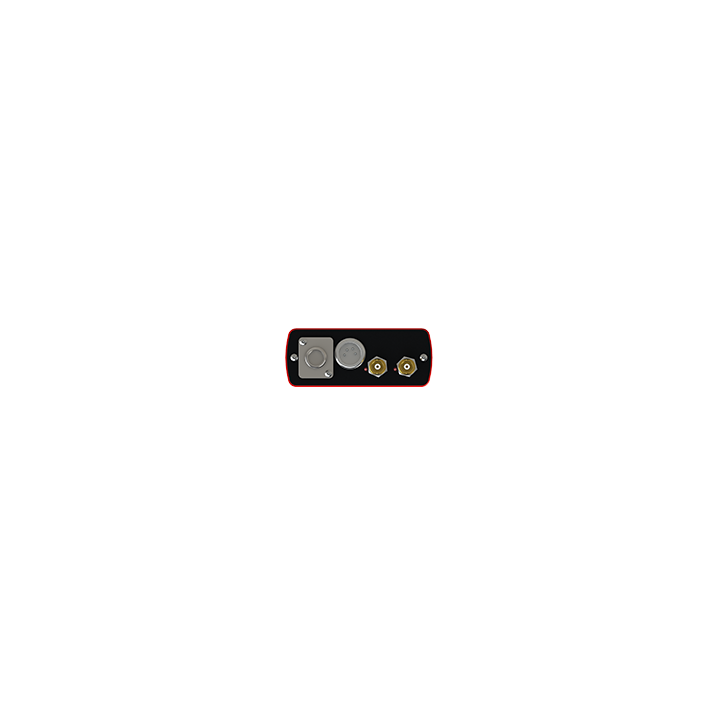

Ruggedised Stand Alone Portable Encapsulator Interface. A single channel of SD-SDI, HD-SDI or 3G-SDI (with loop out) is wrapped up in IP wrappers and is multicast over a standard 10G network via multimode fibre on Neutrik OpticalCON DUO. Supports SMPTE 2022-6, SMPTE 2022-7 and SMPTE ST2110. Power via 12V input on XLR-4. Power supply included.
... learn more
Visuals Price
3,746.70 CHF VAT excl.

4,050.18 CHF Inc. VAT

Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Bluebell ruggedised portable standalone encapsulation interface (with output loop)
Ruggedised portable standalone encapsulation interface.
A single SD-SDI, HD-SDI or 3G-SDI channel (with output loop) is encapsulated into IP packets and multicast over standard 10G networks via multimode fibre over Neutrik OpticalCON DUO. Supports SMPTE 2022-6, SMPTE 2022-7 and SMPTE ST2110.
Power via 12V input on XLR-4.
Power supply included.
Preliminary datasheet for 3G-SDI to IP encapsulation and decapsulation device Edgware by Bluebell 3G-SDI to IP encapsulator and decapsulator The Edgware encapsulator module is a simple yet very powerful edge device that sits between the broadcast world and IP networks.
A single SD-SDI, HD-SDI or 3G-SDI channel is encapsulated into IP packets and multicast over standard 10G networks.
A simple graphical interface allows users to configure two IP addresses and the unit will transmit uncompressed video between them.
Using seamless transfer protocol, your live content arrives unaffected.
This encapsulator works with the Edgware decapsulator using SMPTE 2022-6 with an option for SMPTE2022-7 coming soon.
This unit supports AIMS, AMWA and NMOS.
TR03 and ST2110 are currently in development.



Specification



Electrical input



Standards

SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI

Equalisation

Automatic up to 100 m @ 3 Gb/s Automatic up to 200 m @ 1.485 Gb/s Automatic up to 300 m @ 270 Mb/s Equaliser and reclocker can be bypassed to support data rates down to 50 Mb/s.

Connector

BNC 75 Ohm according to IEC 60169-8 Amendment 2

Return loss

> 15 dB @ 1.485 Gb/s

Electrical output



Connector

BNC 75 Ohm according to IEC 60169-8 Amendment 2

Return loss

> 15 dB @ 1.485 Gb/s

Polarity

Non-inverting

Signal level

l 800 mV +/- 10%

DC Offset

0 +/- 0.5 V

Jitter

<0.15 UI equalised line

Format

Active driven output loop

Optical output



Connector

1 x LC female standard per channel

Wavelength

850 nm multimode

Sensitivity

> -25.0 dBm @ 3 Gb/s > -25.5 dBm @ 1.485 Mb/s > -26.0 dBm @ 270 Mb/s

Max input power

> -1 dBm

Data rate

270Mb/s ; 1.485Mb/s, 3Gb/s

IP interface



Connector

LC duplex

Interface:

SFP duplex multimode, 10G Ethernet

Encapsulation:

SMPTE2022-6, SMPTE2022-7, ST2110, TR03

Compatibility

10GBase SFP+ 10G, 10GBase-LR, SFF-8431 SFP+, MSA

General card specifications

Depth:

165 mm

Width:

110 mm 4HP

Height:

45 mm (3RU)

Weight:

100 g

Operating temperature:

-30 to +70 ºC

Power supply:

3 W

Compliance



EMI/RFI:

Complies with standards 89/336/EEC, EN55022B,

Electrical:

Complies with standards EN61000-6-1, EN61000-6-2,

Laser safety

Complies with Class 1 laser product standards 24 CFR 1040.10 & 1040.11

RoHS:

Complies with directive 2002/95/EC

Optical output



Connector

1 x LC female standard per channel
