Sony HDCU-3170/4E - HDCU-3170 with Lemo 4E connector and with Plate
13,006.59 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks

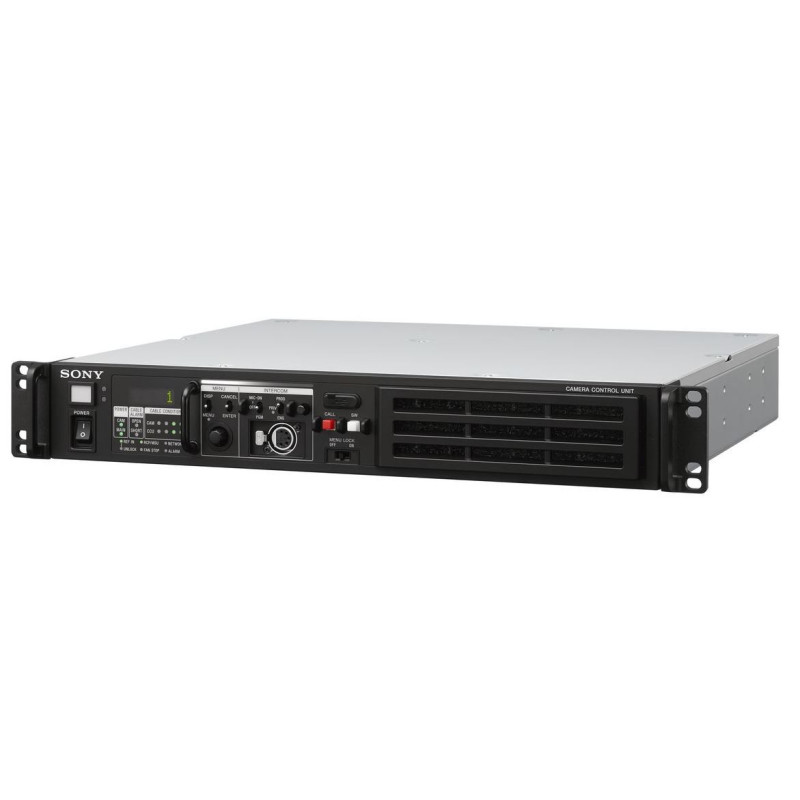

The HDCU-3170 Triax Camera Control Unit is the ideal companion for the Sony HDC-3170 system camera. It also adds live IP production capabilities to our comprehensive range of broadcast and studio system cameras.
Whilst primarily intended for triax use, the addition of the HKCU-FB30 fibre option board makes the HDCU-3170 compatible with both triax and fibre systems - an advantage for production companies and broadcast vehicles working in stadiums and venues equipped with different transmission systems.
By installing the optional HKCU-UHD30 4K/HDR processor board, the HDCU-3170 can produce 4K signals when connected to an HDC series system camera. Additionally, the addition of the optional HKCU-SDI30 12G-SDI interface kit enables 4K signal transfer via a single BNC cable
Connecting to compatible cameras via a triax cable, the compact (1.5U) HDCU-3170 provides power to the camera, performs signal processing and provides an interface with external equipment.
With the addition of optional boards and kits, the HDCU-3170 offers support for various interfaces, including 3G SDI and IP. The CCU can simultaneously provide HD, HDR and SDR outputs when used with HDC-3170 series system cameras.
Combined with the HKCU-SFP30 option board, designed for the SMPTE ST 2110 Professional Media Over Managed IP Network suite of standards, the HDCU-3170 CCU supports the essential features required for live IP production, including tally, intercom and return.
Features
Compact and versatile
The compact 1.5U camera control unit creates a standard 19-inch rack system, ideal for production areas with limited space.
Eight built-in SDI outputs
The HDCU-3170 is equipped with eight built-in SDI outputs, including four 3G-SDI outputs. For additional production flexibility.
MENU adjustment from web browser
The CCU supports menu control from a web browser. Monitoring the status of multiple CCUs, importing/exporting settings files and remote firmware updates improve operational efficiency and convenience.
IP functionality for live production
The optional HKCU-SFP30 interface kit adds the essential features required for live IP production, including ST2110 output and return and NMOS IS-04/05 as well as tally, intercom and return over IP.
Long-distance high-quality signal transmission
The addition of the optional HKCU-SFP30 supports long-distance signal transmission up to 10 km over single-mode fibre, making the CCU ideal for environments with limited space such as outside broadcast vehicles.
|
|
Specifications |
|
|
General |
|
|
|
Power supply |
100 V to 240 V AC, 50/60 Hz |
|
|
Power consumption |
4.5 A (max.) |
|
|
Operating temperature |
5 °C to 40 °C (41 °F to 104 °F) |
|
|
Storage temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
|
|
Mass |
Approximately 8.1 kg (17 lb 14 oz) |
|
|
Input/output connectors |
|
|
|
CAMERA FIBRE |
No |
|
|
TRIAX CAMERA |
Triax connector (x1) |
|
|
INTERCOM/TALLY/I/O PORT |
50-pin D-sub connector (x1) |
|
|
RCP/CNU |
8-pin multi-pin connector (x1) |
|
|
TRUNK |
12-pin (x1) |
|
|
LAN-COM |
8-pin (x1) |
|
|
NETWORK TRUNK |
8-pin (x1) |
|
|
SDI I/O 1 to 4 |
3G/HD/SD SDI I/O |
|
|
REFERENCE INPUT/OUTPUT |
BNC (x2), loop output |
|
|
Input connectors |
|
|
|
AC INPUT |
100 V to 240 V AC (x1) |
|
|
SDI RET 1 to 4 |
BNC (x4) |
|
|
PROMPTER 1 |
BNC (x2), loop output in 1CH mode, internal 75 Ω termination in 2CH mode, analogue signal, 1.0 Vp-p, 75 Ω |
|
|
Output connectors |
|
|
|
AUDIO OUTPUT CH1, CH2 |
3-pin XLR, male (x2), 0 dBu/–20 dBu/+4 dBu |
|
|
CHARACTER/ABS/EBU |
BNC (x1), VBS, 1 Vp-p, 75 Ω |
|
|
SDI OUTPUT 1 to 4 |
3G/HD/SD SDI OUTPUT |
