Variosystems - Capture Card

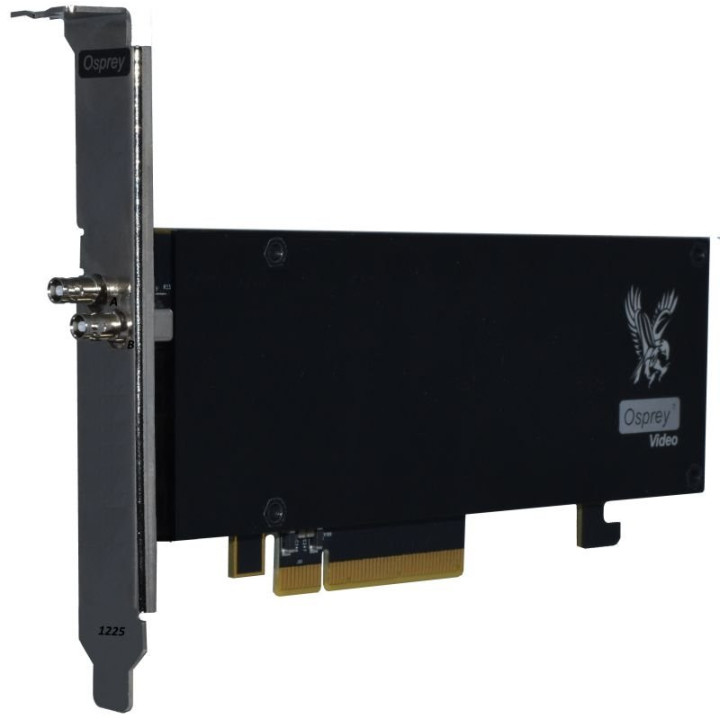

Variosystems VS-OS-95-00514 - Capture Card

1012186
0850189006801
Variosystems VS-OS-95-00514 - Capture Card
Variosystems VS-OS-95-00514 - Capture Card
2x 12G SDI, Embedded 8 Stereo Audio Pairs per Channel
... learn more
Visuals Price
1,610.97 CHF VAT excl.

1,741.46 CHF Inc. VAT

Manufacturer price 1 695,76 CHF VAT excluded
Made to order
  • Delivery
  • In-store pickup

Variosystems Capture Card
The Osprey Raptor 1225 offers two 12G Gb/s ports. The ports support SD, HD, Ultra HD, and 4K DCI.
All Raptor 12xx cards can record at 60 fps.
Each individual SDI input supports 16 audio channels (8 stereo channels).
Features
- PCIe capture card
- 60 fps recording
- Two 12G-Gb/s ports - SD, HD, Ultra HD, 4K DCI
- SDI audio input supports 16 channels (8 stereo) per port
- Closed caption support
- Watermark overlay
- Scaling
- Frame rate conversion
- SimulStream



Specifications



PCI Format

PCI Express Gen2 (8x)

Slots: 8x or 16x

Connections

2x 12 Gb/s SD/HD/3G-A/2K/4K (Micro HD BNC)

Video Standards

525i 59.94 NTSC, 625i 50 PAL

720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080psf 23.98, 24, 25, 29.97, 30

1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080i 50, 59.94, 60

2K DCI 23.98p, 24, 25, 29.97, 30, 50, 59.94, 60

2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

4K DCI 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

Audio Input

SDI embedded - 8 stereo pairs per SDI input

SDI Compliance

SMPTE 259/292/296/424/425/2081/2082, ITU-R BT.656 and ITU-R BT.601

Supported SDI Metadata

CEA-608, CEA-708

Audio Sampling

Television standard - 48 kHz at 24-bit

SDI Colour Precision

RGB 8, 10, 12-bit 4:4:4 up to 4K DCI 30p and YUV 8, 10, 12-bit 4:4:4 and 4:2:2 in all modes

Weight

128 g

Power Consumption

~ 8.20 W

Temperature Range

Operating: 0 to 40°C



2x 12G SDI, Embedded 8 Stereo Audio Pairs per Channel
