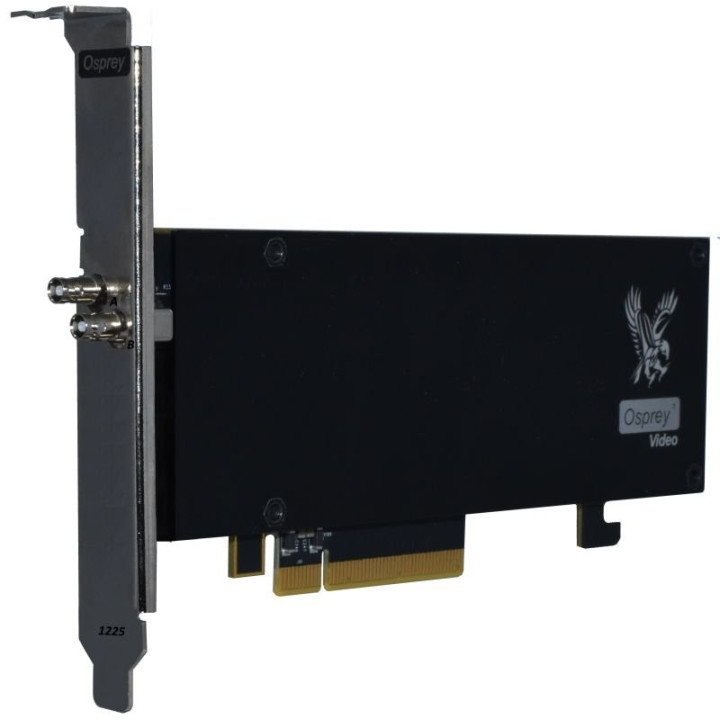

Specifiche

Formato PCI

PCI Express Gen2 (8x)

Slot: 8x o 16x

Connessioni

2x 12 Gb/s SD/HD/3G-A/2K/4K (Micro HD BNC)

Standard video

525i 59,94 NTSC, 625i 50 PAL

720p 23,98, 24, 25, 29,97, 30, 50, 59,94, 60

1080psf 23,98, 24, 25, 29,97, 30

1080p 23,98, 24, 25, 29,97, 30, 50, 59,94, 60

1080i 50, 59,94, 60

2K DCI 23,98p, 24, 25, 29,97, 30, 50, 59,94, 60

2160p 23,98, 24, 25, 29,97, 30, 50, 59,94, 60

4K DCI 23,98, 24, 25, 29,97, 30, 50, 59,94, 60

Ingresso audio

SDI integrato - 8 coppie stereo per ingresso SDI

Conformità SDI

SMPTE 259/292/296/424/425/2081/2082, ITU-R BT.656 e ITU-R BT.601

Metadati SDI supportati

CEA-608, CEA-708

Campionamento audio

Standard televisivo - 48 kHz a 24 bit

Precisione colore SDI

RGB 8, 10, 12 bit 4:4:4 fino a 4K DCI 30p e YUV 8, 10, 12 bit 4:4:4 e 4:2:2 in tutte le modalità

Peso

128 g

Consumo energetico

~ 8,20 W

Intervallo di temperatura

Funzionamento: 0 a 40°C
