AJA - OEM, HD/SD PCIe card

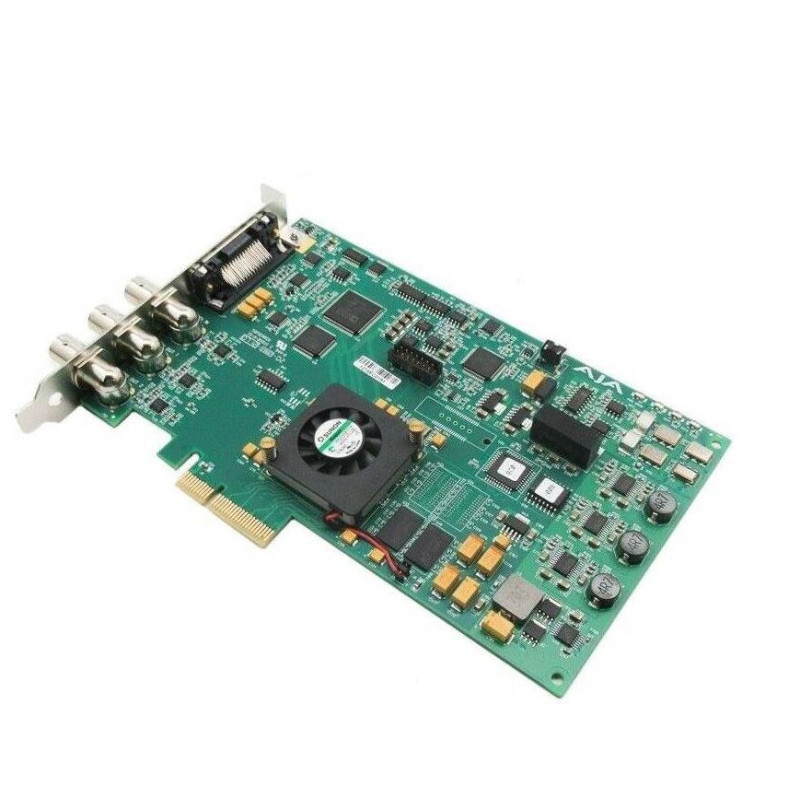

AJA KONA-LHE+R0-S02 - OEM, HD/SD PCIe card

1018513
0812321031119
AJA KONA-LHE+R0-S02 - OEM, HD/SD PCIe card
AJA KONA-LHE+R0-S02 - OEM, HD/SD PCIe card
OEM, HD/SD PCIe card, with breakout cable (no retail software). Please contact Sales to discuss your cable options.
... learn more
Visuals Price
1,168.74 CHF VAT excl.

1,263.41 CHF Inc. VAT

Manufacturer price 1 230,25 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Aja HD/SD OEM PCIe card
Affordable power
The KONA LHe Plus offers video professionals at all levels an affordable desktop I/O solution that makes no compromises on quality or essential features. The KONA LHe Plus supports HD/SD analogue and digital I/O for video and audio, offering maximum capability, simplifying the integration of analogue and digital signals into a single workflow and multiple output options to ensure delivery of required formats.
Versatile I/O
With support for 10-bit or 8-bit uncompressed video, the KONA LHE Plus features one input and two outputs that can be independently configured for HD or SD. The KONA LHe Plus also includes 2-channel AES digital audio, 8-channel embedded SDI digital audio, composite/S-video/SD/HD component video input/output, 2-channel balanced analogue audio input/output, genlock input and three BNCs that can be configured for analogue video input and output (HD or SD).
Workflow
Compatible with macOS, Windows and Linux, the KONA LHe Plus offers simple and cost-effective connectivity for a variety of workflows.
Unique analogue workflows
As the KONA LHe Plus supports 12-bit analogue HD component input and output, devices with analogue HD output, such as analogue VTRs and games consoles, can be connected for different workflows.
RS-422
A 9-pin RS-422 connection available on the included breakout cable or on the optional KL-Box-LH breakout box enables the KONA LHe Plus to take control of external devices for precise frame-accurate captures and transfers.
AJA hardware conversion
The KONA LHe Plus features 10-bit broadcast-quality HD to SD down conversion with motion compensation and 12-bit HD/SD component analogue output. The down converter enables the KONA LHe Plus to connect to analogue SD devices for output. This can be used to verify framing and colour for SD versions whilst working in full resolution HD in your application, ensuring appropriate quality for multi-format deliveries. As the conversion is hardware-based, it is permanently available - during capture or playback.
Extend your connectivity with KL-Box-LH
The optional KL-Box-LH breakout box allows you to easily integrate the KONA LHe Plus into rack environments for quick access to all video and audio connections. Additional connectivity includes digital AES/EBU BNC connectors and RCA audio monitoring jacks.




Specifications



Video formats

(HD) 1080i 50, 59.94, 60
(HD) 1080p 23.98, 24, 25, 29.97, 30
(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Digital video input

SD/HD SDI, SMPTE-259/292/296, 8 or 10-bit
Single-link 4:2:2 (1x BNC)

Analogue video input

Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
NTSC, NTSCJ, PAL
Component (3x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525-line, Betacam 525J, RGB
12-bit A/D, 8x oversampling
Y frequency response +/- 0.2 dB up to 5.0 MHz
C frequency response +/- 0.2 dB up to 1 MHz
2T pulse response 0.5%
Differential phase <1%
Differential gain <1%
Y/C delay inequality <1 ns

Digital video output

HD SDI, SMPTE-292/296, 10-bit
SD SDI, SMPTE-259M, 10-bit

Analogue video output

Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
NTSC, NTSCJ, PAL
Component (3x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525-line, Betacam 525J, RGB
12-bit D/A, 8x oversampling
Y frequency response +/- 0.2 dB up to 5.0 MHz
C frequency response +/- 0.2 dB up to 1 MHz
2T pulse response 0.5%
Differential phase <1%
Differential gain <1%
Y/C delay inequality <1 ns

Digital audio input

8-channel embedded SDI audio SMPTE-259 16 and 24-bit, 48 kHz sampling rate, synchronous
2-channel AES/EBU audio 16 and 24-bit, 48 kHz or 96 kHz sampling rate, synchronous or asynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

Analogue audio input

2-channel analogue audio A/D 16 and 24-bit, 48 kHz sampling rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
+24 dBu digital full scale
Frequency response +/- 0.2 dB from 20 Hz to 20 kHz

Digital audio output

8-channel embedded SDI audio SMPTE-259 16 and 24-bit, 48 kHz sampling rate, synchronous
2-channel AES/EBU audio 16 and 24-bit, 48 kHz or 96 kHz sampling rate, synchronous or asynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KL-Box)

Analogue audio output

2-channel analogue audio D/A 16 and 24-bit, 48 kHz sampling rate, balanced (via 2x XLR on breakout cable or optional KL-Box)
+24 dBu digital full scale (0 dBFS)
Frequency response +/- 0.2 dB from 20 Hz to 20 kHz
2-channel unbalanced output (via 2x RCA jacks on optional KL-Box)

Down conversion

10-bit hardware
Anamorphic: full screen
Letterbox: the image is reduced with black bars added at the top and bottom whilst preserving the aspect ratio
Crop: the image is cropped to fit the new screen size

Reference input

Analogue black (1 V) or composite sync (2 or 4 V)
Looping
75 ohms on optional KL-Box, terminated on supplied breakout cable

Electrical interface

PCIe 1.0 4-lane

Machine control

RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)
9-pin D connector pinout: 1. GND, 2. RX-, 3. TX+, 4. GND, 5. No connection, 6. GND, 7. RX+, 8. TX-, 9. GND, Shield. GND

Power

13 W typical, 15 W maximum

Safe operating temperature

32 to 104 degrees F (0 to 40 degrees C)

Safe storage temperature (power off)

-40 to 140 degrees F (-40 to 60 degrees C)

Operating relative humidity

10-90% non-condensing

Operating altitude

<10,000' (<3,000 m)

Dimensions (W x D x H)

0.75 x 8.25 x 5" (19.05 x 209.55 x 127 mm)

Weight

0.7 lb (0.4 kg)



OEM, HD/SD PCIe card, with breakout cable (no retail software). Please contact Sales to discuss your cable options.
