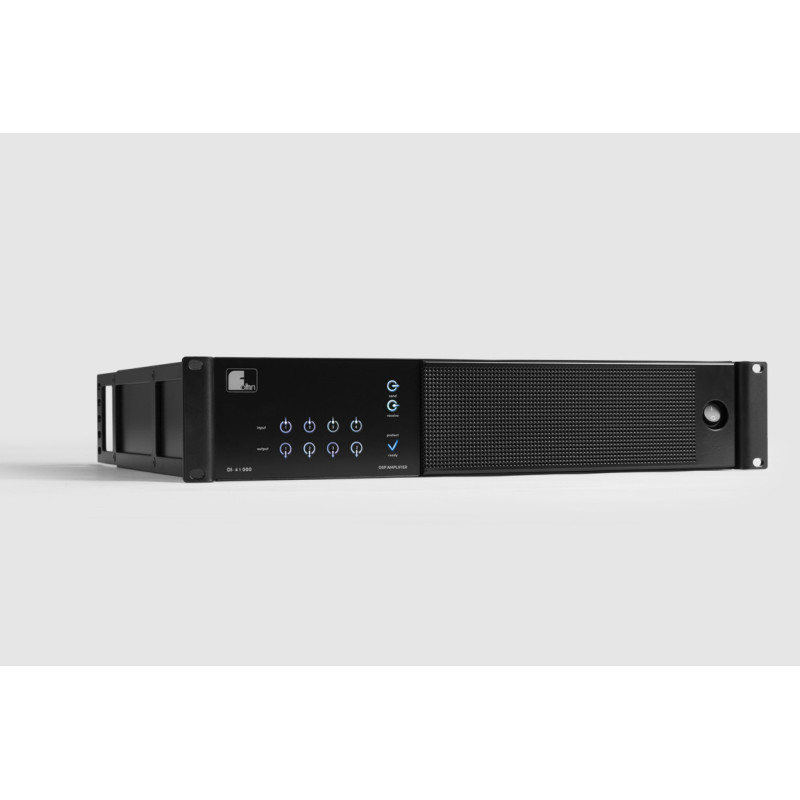

Fohhn DI-4.1000 AES - Digital High-Performance Amplifier
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The new digital amplifiers of the DI series have been developed and manufactured in-house by Fohhn in Germany. At every stage of development, new intelligent technologies have been implemented. The DSP-controlled amplifiers operate at the highest level and guarantee maximum operational reliability, maximum power density and excellent sound. Since 2002, Fohhn has been developing high-quality and reliable digital electronic components that have been systematically integrated into the company's own product ranges. The DI series amplifiers represent 15 years of expertise in digital electronics, with many customer requests fulfilled. Developed for mobile sound reinforcement applications and fixed installations, the amplifiers offer all essential functionalities as well as practically unlimited connectivity in terms of audio signal inputs. Even if you now opt for an AES/EBU, Dante™, Optocore or Analogue option, you are not permanently committed: The optional input interfaces can be modified as required, customising your amplifier to suit the relevant digital or analogue network. The extensive DSP processing of inputs and outputs allows you to intelligently adapt your speaker systems to the particular sound reinforcement situation and room acoustics. All DSP functions can be controlled in real time using FOHHN AUDIO SOFT. The DI-4.1000 has an output power of 2000 W / 4 ohms per channel, four input channels and four output channels. It has a compact 2U / 19" housing and weighs only 9.4 kg. The amplifier operates extremely quietly and its fans are not used at idle.
Key features at a glance:
- Developed for mobile applications and fixed installations
- Network compatible, remote control, remote monitoring
- Extensive DSP processing for inputs and outputs
- Input options: AES/EBU (terminal block or XLR), Dante™, Optocore or Analogue
- Output options: terminal block or Speakon connectors
- Universal microprocessor-controlled power supply, 100-240 V AC, with power factor correction (PFC) and detection functions for mains voltage, power consumption and temperature
- Auto Power Save for fanless operation at idle, temperature-controlled fans
- Two configurable switching contacts, one fault contact
- Performance presets for all relevant Fohhn speakers
- Up to 10 seconds of peak power
Virtually unlimited connectivity

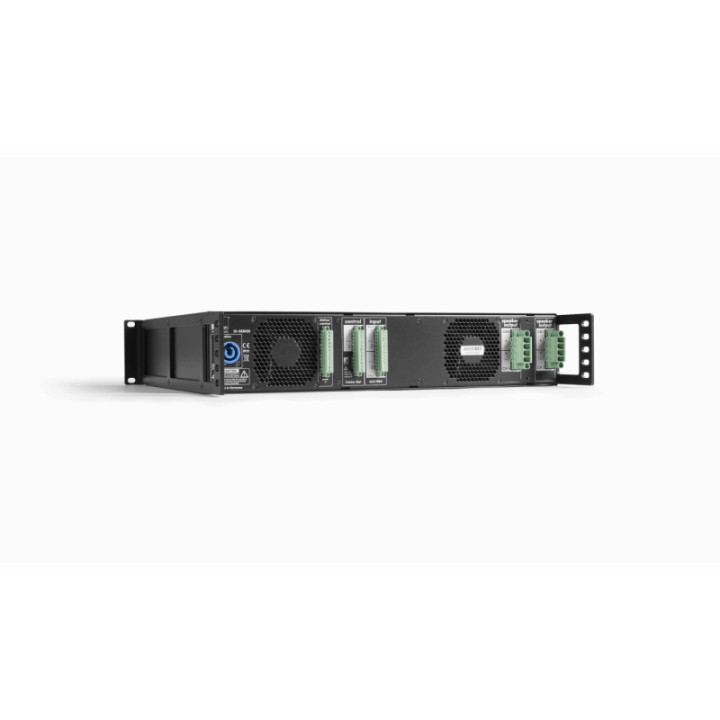

The DI-4.1000 is available with different connection options. Input options include AES/EBU (terminal block or XLR), Dante™, Optocore or Analogue (XLR). For outputs, you can choose between terminal blocks and Speakon connectors. Depending on sound reinforcement requirements, the optional input and output interface modules can be interchanged. The amplifier is supplied as standard with AES/EBU digital inputs and terminal blocks.
Innovative power electronics
Intelligent control – maximum reliability
The DI-4.1000 is equipped with highly efficient DSP technology. The integrated Fohhn Audio DSPs on each input and output channel include all essential audio tools such as 10-band parametric equaliser, delay, X-Over filter, phase, dynamics processor or tone generator. All settings can be saved as user presets and recalled in real time. Factory/performance presets are available for all Fohhn speakers. They ensure optimal speaker protection and guarantee the best possible sound performance for the power level. The amplifier is network-compatible and can be controlled and monitored remotely. Direct access to all presets and DSP functions is therefore guaranteed at all times. Up to 254 amplifiers can be centrally controlled in a network via FOHHN AUDIO SOFT. Transparent connection to all current multimedia control systems is also possible. An integrated power-on delay enables sequential (remote) power-up of multiple amplifiers connected in a rack. For larger installations and live sound applications involving multiple systems, this function considerably facilitates overall handling.
Quiet operation
The amplifier fans are temperature-controlled and optimised for extremely quiet operation. At idle, fans are not used (Auto Power Save function). The fan and filter foam can be cleaned manually, without tools.
|
|
Specifications |
|
|
Amplification technology |
Class D |
|
|
Output power |
4 x 1000 W / 4 ohms |
|
|
Minimum impedance |
4 ohms |
|
|
Input channels |
4 |
|
|
Amplifier outputs |
4 |
|
|
DSP routing (matrix) |
4 x 4 |
|
|
Frequency response |
20 Hz – 20 kHz |
|
|
Signal-to-noise ratio |
>100 dB/A |
|
|
THD+N |
0.08% (1 kHz, 8 ohms, 3 dB below clipping) |
|
|
Dynamic range |
>120 dB |
|
|
Remote control |
Fohhn-Net via RS-485, Fohhn Audio Soft |
|
|
Remote monitoring |
temperature, protection, AES/EBU signals, power supply, Fohhn-Net, Fohhn Audio Soft |
|
|
Fault contact |
1 x Relay, 2 x UM, Phoenix 3-pin |
|
|
Switching contact |
load preset, standby on/off |
|
|
Password protection |
yes |
|
|
Auto Power Save |
adjustable from 1 s to 12 h, or never active |
|
|
Protection circuit |
overvoltage protection, overcurrent protection, overheating protection, short-circuit protection, DC protection, power-on delay, soft start and inrush current limiting |
|
|
Power supply |
100 – 240 V AC 50/60 Hz, universal power supply with power factor correction (PFC) |
|
|
Power consumption |
Maximum (RMS) 1200 W, standby 70 W, auto power save 10 W, sleep 5 W, on/off switch / remote off 2 W |
|
|
Heat loss |
Maximum 200 W, 680 BTU/h, 172 kcal/h (Pink noise, crest factor 6 dB, 1/4 Pmax) |
|
|
Temperature range |
0 – 40°C |
|
|
Cooling |
temperature-controlled fan |
|
|
Weight |
9.4 kg |
|
|
Dimensions (W x H x D) |
2 RU / 19″, 485 x 89 x 425 mm |
|
|
Controller |
|
|
|
Digital signal processors |
2 |
|
|
Independent limiters |
20 |
|
|
3-band selective limiting |
bass/mid/treble |
|
|
Band-specific time constants |
yes |
|
|
Filtering technology |
Double precision 80 bits |
|
|
Input |
AES/EBU 32 kHz – 96 kHz, 16/24 bits |
|
|
Input DSP processing |
yes |
|
|
FIR |
yes |
|
|
Input gain |
-80 dB – +12 dB |
|
|
Routing gain |
-80 dB – +12 dB |
|
|
Output gain |
-80 dB – +12 dB |
|
|
EQ |
8 x 10 full parametric filters, Gain +/-12 dB, Frequency 10 Hz – 20 kHz, Q 0.1 – 100 |
|
|
Limiter, Compressor |
8 |
|
|
Noise Gate |
8 |
|
|
Active filter |
8 x Linkwitz-Riley 4th order (24 dB / octave), high-pass 10 Hz – 20 kHz, low-pass 10 Hz – 20 kHz |
|
|
Delay |
4 x 0 – 350 ms (0 – 120 m) outputs, |
|
|
User presets |
100 |
|
|
Speaker presets |
100 |
|
|
System latency |
1.2 ms |
|
|
Connections and controls |
|
|
|
Controls |
On/off switch |
|
|
Controls |
On/off switch |
|
|
Mains connection |
1 x PowerCON |
|
|
Fault contact (open/closed) |
1 x Phoenix 3-pin |
|
|
Switching contact 1 and 2 |
1 x Phoenix 3-pin |
|
|
Remote power on/off |
2 x Phoenix 2-pin |
|
|
Power supply for small external devices 24 V / 5 W |
1 x Phoenix 2-pin |
