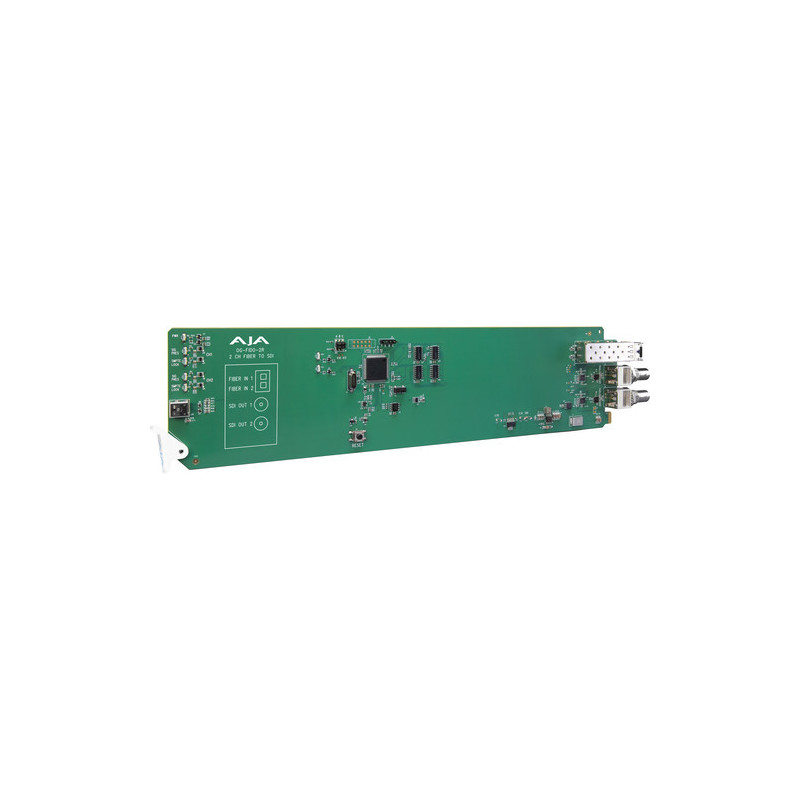

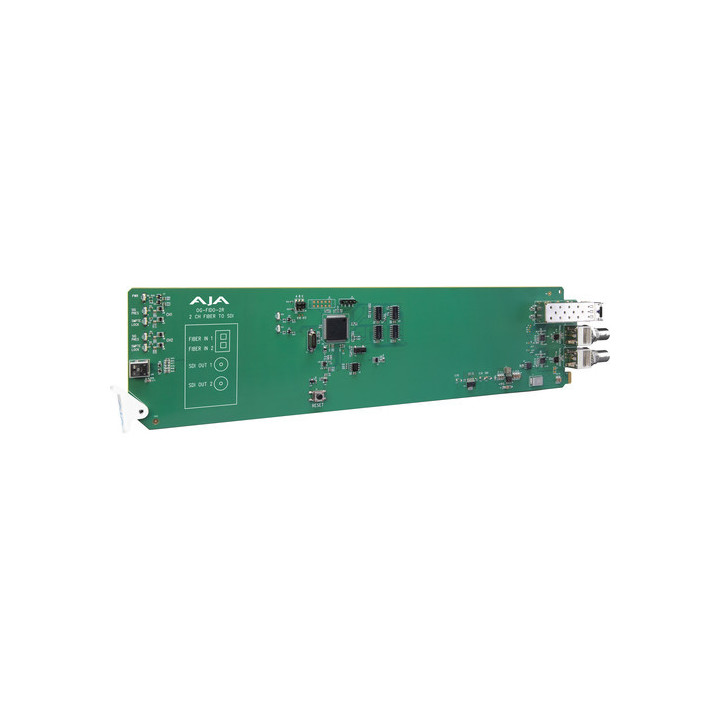

Aja 2-channel multimode LC fibre to 3G SDI receiver
Connectivity
Fibre inputs are reclocked with unparalleled input jitter tolerance. 3G-SDI data rates of 270 Mb, 1.5 Gb and 3 Gb are supported. The fibre connector is attached to the main board for increased reliability and cost savings.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear represents the future of chassis-based products.
Flexible I/O
The modular rear panel allows for custom I/O connections per card (included with individual cards).
Built-in security
The optional redundant power supply provides a secondary power source in the event of a main power supply failure.
Ethernet access
A standard Ethernet connection provides access to the chassis via the Dashboard application for global chassis communication.
Features
- Video formats: 150 Mbps - 3 Gbps, format-independent
- Inputs: 2x multimode LC fibre
- Outputs: 2x 3G-SDI BNC
- Monitoring via openGear DashBoard
- Input presence and SMPTE lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic selection
- Nominal wavelength: 850 nm
- Power supply: 2.5 watts
- Hot-swap compatible
- Compatible with openGear OGX, OG3 and DFR-8321 chassis
|
|
Specifications
|
|
|
Video formats
|
150 Mbps - 3 Gbps, format-independent
|
|
Digital video input
|
2 independent multimode LC fibre inputs, SMPTE-297
Nominal wavelength: 850 nm
Optical sensitivity: -15dBm (min)
Overload power: 0dBm
|
|
Digital video output
|
2 independent 3G-SDI BNC outputs, SMPTE-259/292/424
|
|
Reclocking
|
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic selection
All other data rates are transmitted without reclocking
|
|
Dimensions (W x D x H)
|
4.6 x 1.71 x 0.85 inches (117 x 43.5 x 21.6 mm)
|
|
Weight
|
0.5 lb (0.3 kg)
|
|
Power supply
|
3 watts max
Uses 5-20VDC power supply (AJA model DWP-U-R1 power supply included)
|
|
Environment
|
Safe operating temperature: 0 to 40 °C (32 to 104 °F)
Safe storage temperature (power off): -40 to 60 °C (-40 to 140 °F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: < 3,000 metres (< 10,000 feet)
|
