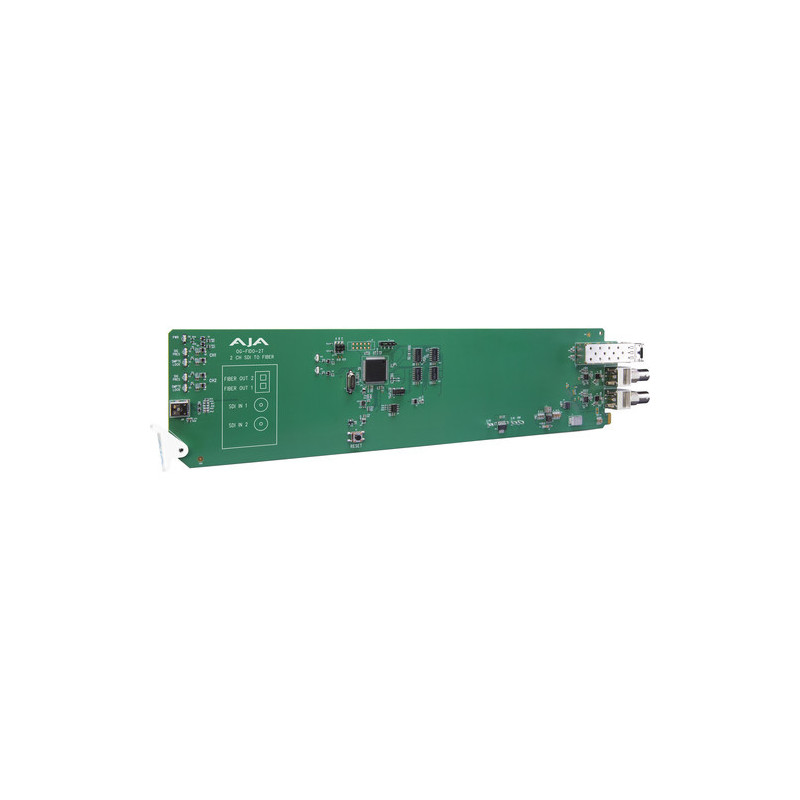

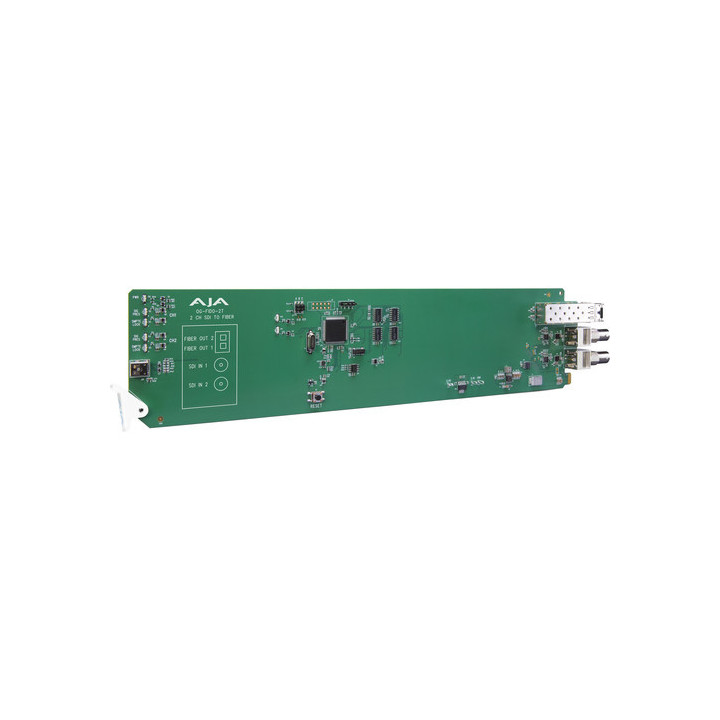

Aja 2-channel 3G-SDI to multimode LC fibre transmitter
Connectivity
3G-SDI inputs are resynchronised with best-in-class input jitter tolerance. 270Mb, 1.5Gb and 3Gb 3G-SDI rates are supported. The fibre connector is mounted on the main board for increased reliability and cost savings.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of frame-based products.
Flexible I/O
Modular rear panel allows custom I/O connections per card (included with individual cards).
Built-in security
Optional redundant power supply provides a secondary power source in the event of main power supply failure.
Ethernet access
A standard Ethernet connection provides access to the frame via the Dashboard application for general frame communication.
Features
- Video formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 2x 3G-SDI BNC
- Outputs: 2x multimode LC fibre
- Monitoring via openGear DashBoard
- Input presence and SMPTE lock LEDs
- Automatic detection and resynchronisation
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic selection
- Nominal wavelength: 850 nm
- Power: 2.5 watts
- Hot-swap compatible
- Compatible with openGear OGX, OG3 and DFR-8321 frames
|
|
Technical specifications
|
|
|
Video formats
|
150 Mbps - 3 Gbps, format agnostic
|
|
Digital video input
|
2 independent 3G-SDI BNC inputs, SMPTE-259/292/424
|
|
Digital video output
|
2 independent multimode LC fibre outputs, SMPTE-297
Nominal wavelength: 850 nm
Optical power: -7dBm (min), -2dBm (max)
Extinction ratio: 7.5dB (Typ)
|
|
Resynchronisation
|
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Automatic selection
All other rates are transmitted without resynchronisation
|
|
Dimensions (w x d x h)
|
4.6 x 1.71 x 0.85 inches (117 x 43.5 x 21.6 mm)
|
|
Weight
|
0.5 lb (0.3 kg)
|
|
Power supply
|
3 watts max
Uses 5-20VDC power supply (AJA DWP-U-R1 model power supply included)
|
|
Environment
|
Safe operating temperature: 0 to 40 C (32 to 104 F)
Safe storage temperature (powered off): -40 to 60 C (-40 to 140 F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3,000 metres (<10,000 feet)
|
