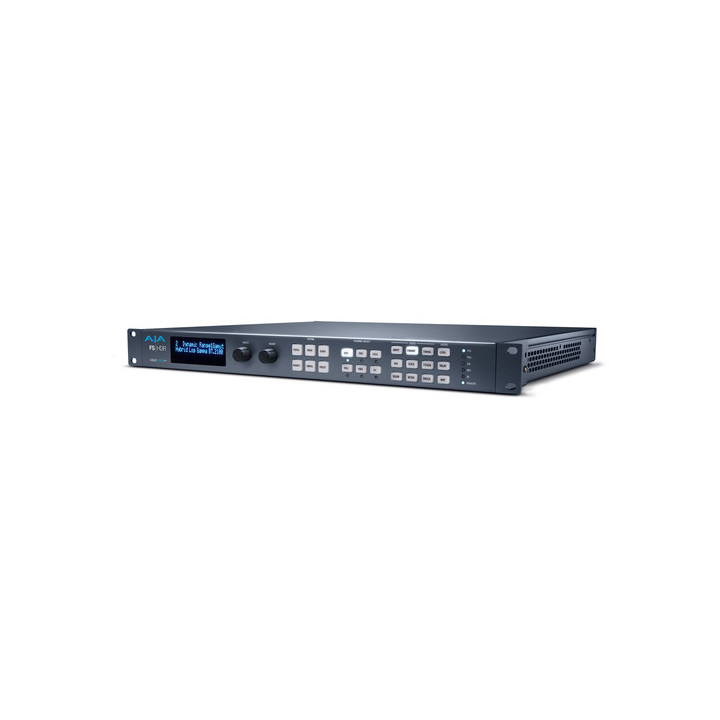

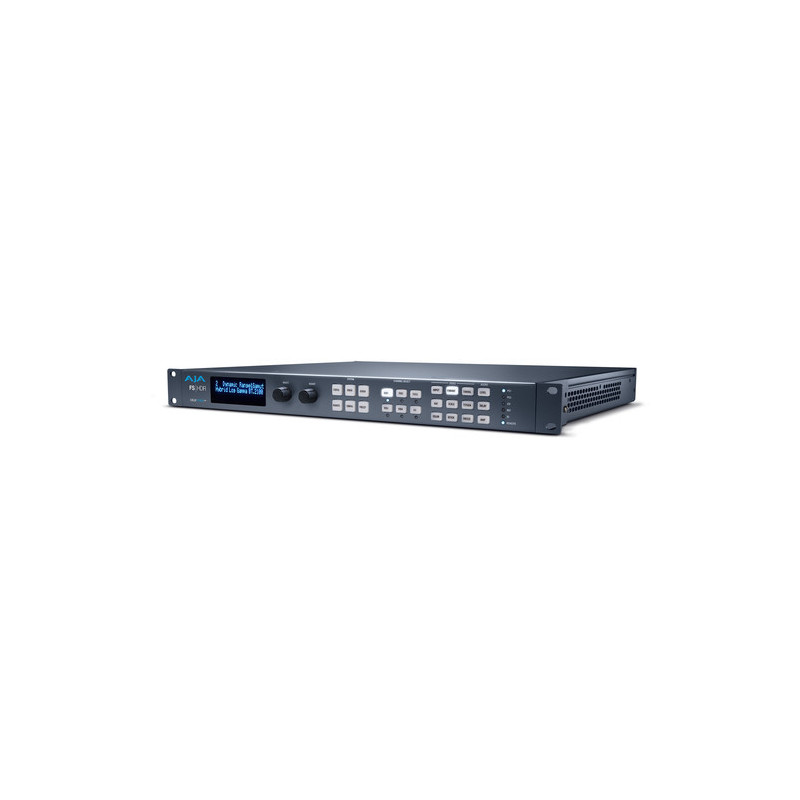

AJA FS-HDR-R0 - Real Time HDR/WCG Conversion
AJA FS-HDR-R0 - Real Time HDR/WCG Conversion
HDR 4K/UltraHD/2K/HD frame synchronizer and converter for HDR/SDR standards conversion
... learn more
Visuals Price
8,984.39 CHF VAT excl.

9,712.12 CHF Inc. VAT

Manufacturer price 9 457,25 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Real-time AJA HDR/WCG conversion
AJA's FS-HDR HDR/WCG frame synchroniser/converter is specifically designed for HDR (High Dynamic Range) and WCG (Wide Colour Gamut) video processing. Proprietary Colorfront algorithms offer real-time colour fidelity and minimal latency for UHD/4K and HD/2K workflows. The FS-HDR also operates as a single-channel UHD 4K cross-converter, or 4-channel HD/2K converter, with comprehensive HDR, scaling, colour correction and de-interlacing functions.
The Colorfront engine is integrated into the FS-HDR, providing video and colour space processing. Cinematic colour spaces such as ARRI Log C, Canon Log 2/3, Panasonic V-Log, RED Log3G10/Wide Gamut and Sony S-Gamut3/S-Log3 are accurately reproduced and converted from log to HDR or SDR output.
With a wide range of connection options for video and audio, in frame synchroniser mode, the FS-HDR does the work of four separate devices in 2K/HD/SD. Combine all processors and channels together for maximum flexibility for UHD/4K productivity. UHD/4K input and output options include quad 1.5G, dual 3G and quad 3G, 6G and 12G across a range of SDI choices and optional fibre.
In single-channel mode, the FS-HDR will convert your HD or SD content to UHD/4K and vice versa, with a wide range of audio channels over fibre, 3G-SDI, AES and MADI connectors. In four-channel mode, the FS-HDR offers multi-channel conversion with up to 4 simultaneous processing channels for 2K/HD and SD signals. Closed captioning is preserved even when converting between formats, and a looping reference input allows synchronisation with your internal reference signal.
These multiple conversion/synchronisation functions are housed in the FS-HDR's compact 1 RU chassis. Control the FS-HDR using the front panel buttons or the web user interface via the integrated 10/100/1000 Mb Ethernet port. When working with large installations, configurations can be applied and saved across multiple FS-HDR units, ensuring consistency and speed.
Features
- Real-time High Dynamic Range (HDR) conversion from SDR to HDR, HDR to SDR, and HDR to HDR; support for BT.709 and BT.2020
- Colorfront engine video processing for a single 4K/UltraHD/2K/HD channel (including down-conversion to HD HDR), or up to four 2K/HD channels simultaneously
- Real-time conversion of your camera's log output to 4K/UltraHD or 2K/HD, then output in HDR or SDR; extensive support for popular log formats
- HDR workflow support for a range of UHD/4K and HD/2K configurations
- Cross-conversion including scaling, ROI scaling, colour correction, proc amp control, motion-adaptive de-interlacing, etc.
- Supports up-conversion, down-conversion and cross-conversion of SD, HD or 2K video on 12G/6G/3G-SDI to UHD/4K video and vice versa
- Uses standard BNCs as well as optional SFP optical inputs and outputs, supports SDI workflows up to 12G
- BNC and fibre inputs and outputs accept SDI signals at UHD/4K/2K/HD/SD resolution in single-channel mode
- 2K/HD/SD inputs can be routed to up to four slots simultaneously
- The looping reference input allows the synchroniser to be locked to your house reference signal for rock-solid stability
- Transports multiple SDI, MADI and AES signals along a single cable for a multitude of routing possibilities, including 1 to 1 or 1 to many
- Configuration and control using front panel buttons or web user interface via the integrated 10/100/1000 Mb Ethernet port
- Closed caption conversion between 2K/HD/SD and UHD/4K formats
- Compact 1 RU size suitable for OB vans, studios and post-production facilities




Specifications



Operating modes

Four independent 2K, HD or SD video processors
One 4K, UltraHD, 2K, HD or SD video processor

Input dynamic range / Colour gamut

SDR BT.709 100 Nits
PQ BT.2020 1000 Nits
PQ P3D65 1000 Nits
Hybrid Log Gamma BT.2100
Sony S-Gamut3/S-Log3
ARRI Log C Wide Gamut
Panasonic V-Log
RED Log3G10/Wide Gamut
Canon Log 2
Canon Log 3

Output formats

SDR BT.709 100 Nits
PQ BT.2020 1000 Nits
Hybrid Log Gamma BT.2100
Sony S-Gamut3/S-Log3

HDR conversion

HDR to HDR
HDR to SDR
SDR to HDR

Colorimetry

Supports BT.709 and BT.2020

Video formats

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
YCbCr, 4:2:2, 10-bit

Digital video input

4 x 3G-SDI inputs, 4 x BNC
4 x 3G-SDI inputs, 4 x fibre or HD-BNC (optional SFP modules)
Fibre SFP modules, 3G-SDI, dual LC, single LC or single SC, SMPTE-297
Fibre SFP module, 12G/6G-SDI, dual LC, SMPTE-297
Coaxial SFP module, 12G/6G-SDI, dual HD-BNC
12G/6G/3G/HD/SD, SMPTE-259/292/424/2081/2082
Single 12G/6G-SDI link (with optional SFP module)
Quad 3G-SDI level A or B-DL link (4 x 3G), SMPTE-425-5
Dual 3G-SDI level B-DS link (2 x 3G), SMPTE-425-3
Single 3G-SDI level A, B-DL or B-DS link, SMPTE 425
Quad HD-SDI link (4 x 1.5G)
Dual HD-SDI link (2 x 1.5G), SMPTE-372
Single HD/SD link
4K/UltraHD input pixel mapping by quadrant (square division) or 2SI (two-sample interleave)
8 x 1 selector feeding the video processor(s)

Digital video output

4 x 3G-SDI outputs, 4 x BNC
4 x 3G-SDI outputs, 4 x fibre or HD-BNC (optional SFP modules)
Fibre SFP modules, 3G-SDI, dual LC, dual LC CWDM, single LC or single SC, SMPTE-297
Fibre SFP module, 12G/6G-SDI, dual LC, SMPTE-297
Coaxial SFP module, 12G/6G-SDI, dual HD-BNC
12G/6G/3G/HD/SD, SMPTE-259/292/424/2081/2082
Single 12G/6G-SDI link (with optional SFP module)
Quad 3G-SDI level A or B-DL link (4 x 3G), SMPTE-425-5
Dual 3G-SDI level B-DS link (2 x 3G), SMPTE-425-3
Single 3G-SDI level A, B-DL or B-DS link, SMPTE 425
Quad HD-SDI link (4 x 1.5G)
Dual HD-SDI link (2 x 1.5G), SMPTE-372
Single HD/SD link
4K/UltraHD output pixel mapping by quadrant (square division) or 2SI (two-sample interleave)

Monitoring output

1 x BNC, 1 x 3G-SDI output
3G-SDI/HD/SD, SMPTE-259/292/424, 10-bit
1 x HDMI, 1 x HD output
2K/HD/SD, HDMI v1.4a
The monitored video processor output (video and audio) is available simultaneously on both connectors
4K/UltraHD converted to 2K/HD
Crop control on HDMI output

Video processing

Motion-adaptive de-interlacer
Proc amp controls
Colour corrector
Legaliser
Frame rate conversion/film cadence removal/insertion (3:2, 1:2, 2:1, 2:3)
Adjustable delay from 0 to 6 frames with H and V sync controls
Closed caption conversion (CEA-608/CEA-708)
AFD input detection, down-conversion control, and output pass-through or rewrite
Freeze (manual or on input signal loss) to black or last valid frame
Matte generator for background fill
Video test pattern generator
Nominal video delay
HD/SD, 2 frames (LFR), 4 frames (HFR)

Format conversion

Converts any supported input format to any supported output format, within the same frame rate family
Frame rate families:
59.94, 29.97, 23.98
50, 25
60, 30, 24

Scaling

Supported in 2K/HD/SD formats:
Zoom in/out
Repositioning
Region of Interest (ROI)

Up-conversion

10-bit hardware
14:9 Zoom - results in a 4:3 image slightly zoomed to fill a 14:9 image with black bars on the sides
Letterbox Zoom - results in a zoomed image to fill the entire screen
Wide Zoom - results in a combination of zoom and horizontal stretch to fill a 16:9 screen - introduces a slight change in image format

Down-conversion

10-bit hardware
Anamorphic - full screen
Letterbox - the image is reduced with black added at the top and bottom of the image area whilst preserving the image format
Cropping - the image is cropped to fit the video output format

Image format conversion

Letterbox - transforms anamorphic SD material into a letterbox format image
H Crop - produces a horizontal stretch effect on the image; transforms anamorphic SD to full screen
SD Pillarbox - produces an image in the centre of the screen with black borders on the left and right sides and an anamorphic image in the centre
V Crop - transforms letterbox SD material into an anamorphic image

Digital audio input

48 kHz sample rate
8 x embedded SDI inputs (16 channels each)
128 channels, 24-bit (20-bit SD), SMPTE-272/299
8 x balanced AES inputs (16 channels), 1 x DB-25
16 channels, 24-bit, AES-3
2 x MADI inputs, 1 BNC, 1 x ST fibre
128 channels, 24-bit, AES-10

Digital audio output

48 kHz sample rate
1 x embedded SDI output per video processor (16 channels each)
16 channels (in single video processor mode), 24-bit (20-bit SD), SMPTE-272/299
64 channels (in four video processor mode), 24-bit (20-bit SD), SMPTE-272/299
8 x balanced AES outputs (16 channels), 1 x DB-25
16 channels, 24-bit, AES-3
2 x MADI outputs, 1 BNC, 1 x ST fibre
128 channels, 24-bit, AES-10

Audio processing

277 x 208 mono audio matrix, 1 to 1, 1 to many routing
Inputs: 128 embedded, 16 AES, 128 MADI, 2 x stereo mixes, 3 tone generators
Outputs: 64 embedded, 16 AES, 128 MADI
Input trim controls for each channel
Gain +18 to -18 dB in 0.5 dB steps
Phase inversion
Input trim controls for each channel pair
Delay -16 ms to +1 second in 20.8 µs steps
Two independent 5.1 or 7.1 to stereo downmix processors with gain adjustment
High-quality sample rate conversion on all audio inputs
SRC bypass for non-PCM audio (e.g. Dolby E, AC-3, etc.)
Audio tone generator (mute, 400 Hz, 1 kHz)

Reference input

External, 2 x BNC
Looping, unterminated
Blackburst or tri-level sync

Genlock

Lock to external reference
Lock to SDI input 1 - 8
Free-running operation based on temperature-compensated crystal oscillator

Network interface

1 x RJ-45, 10/100/1000 Ethernet
Integrated web server for remote control
SNMP

Front panel

Display
Keyboard with status LEDs
Two rotary/push buttons
Comprehensive alarm indicators

Presets

40 presets per mode

GPI

1 x 25-pin D connector
4 x optically isolated GPI inputs
4 x optically isolated GPO outputs

Power supply

100 to 240 VAC 50/60 Hz (dual redundant power supplies)
55 W typical
70 W maximum

Environment

Operating temperature: 0 to 40°C (32 to 104°F)
Storage temperature: -40 to 60°C (-40 to 140°F)
Operating relative humidity: 10 to 90%, non-condensing
Operating altitude: <3000 m (<10,000')

Dimensions (W x D x H)

17.5 x 16 x 1.75" (1 RU) (445 x 406 x 45 mm)

Weight

7.9 lb (3.6 kg)
