AJA - Single-channel SD/HD/3G SDI to Optical Fiber

Name: AJA FiDO-T-R0 - Single-channel SD/HD/3G SDI to Optical Fiber
Brand: AJA
SKU: 5026
Price: 416.81 CHF
Availability: InStock

AJA FiDO-T-R0 - Single-channel SD/HD/3G SDI to Optical Fiber

SKU 5026

EAN 0892448000953

AJA FiDO-T-R0 - Single-channel SD/HD/3G SDI to Optical Fiber

Single-channel SD/HD/3G SDI to Optical Fiber (LC connector) with looping SD/HD/3G SDI output

... learn more

Visuals Price

416.81 CHF VAT excl.

450.57 CHF Inc. VAT

Manufacturer price 555,75 CHF VAT excluded

1 piece(s) in stock

Delivery
- Available, shipped today
In-store pickup
- Geneva, pickup available within 1H
- Zurich, pickup available within 24H

Required accessories
Description

Description

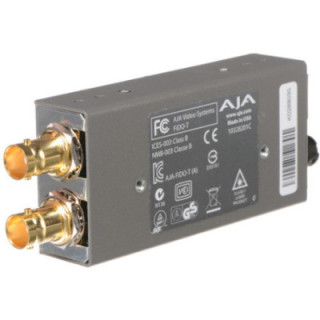

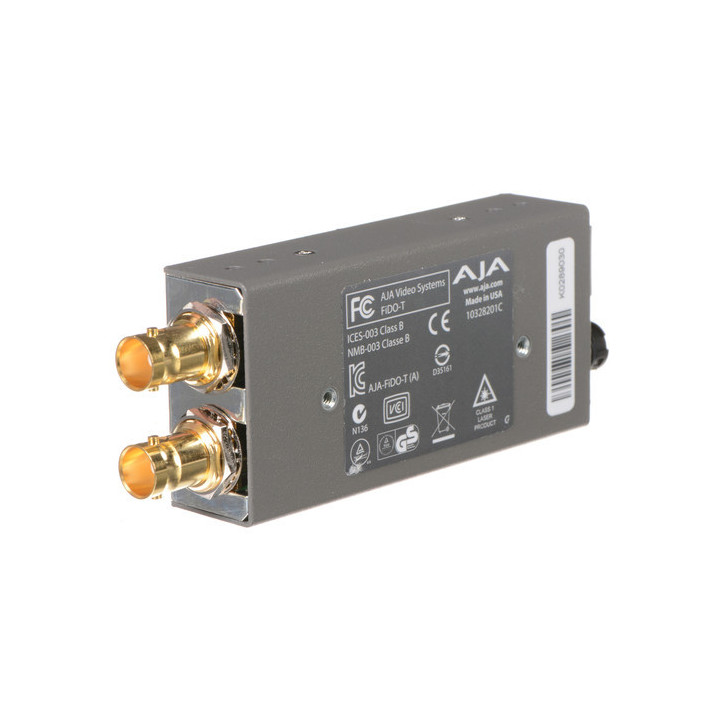

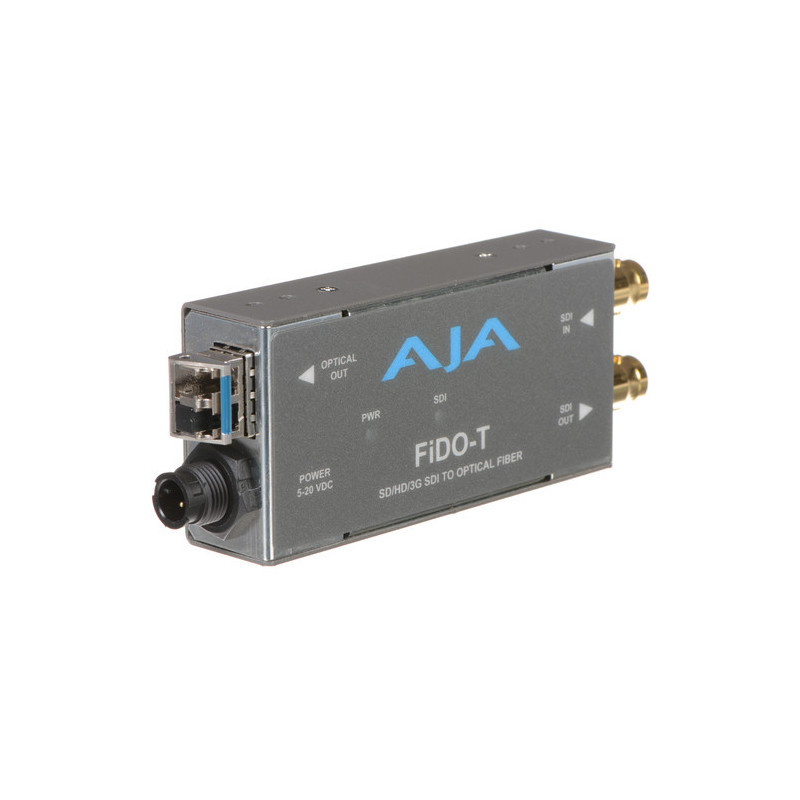

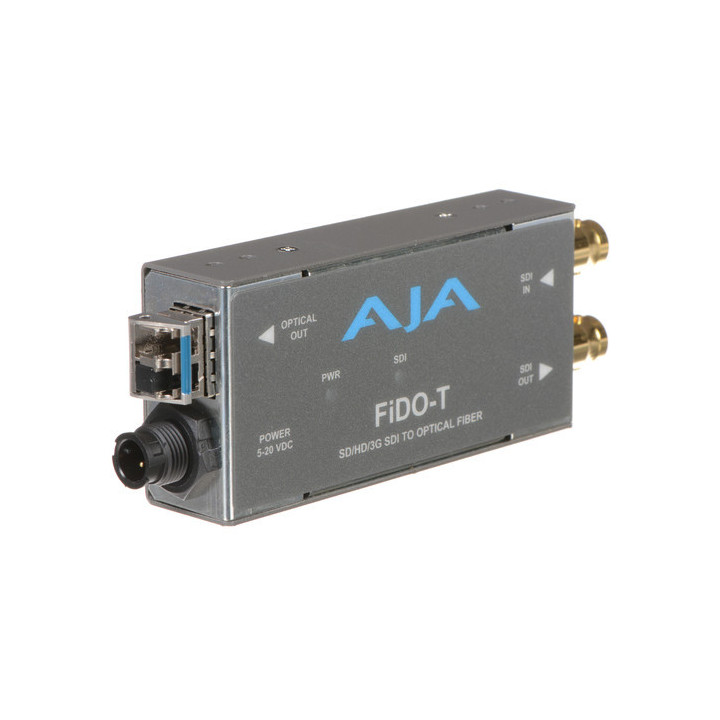

AJA Single-channel SD/HD/3G SDI to Optical Fiber

Convert a 3G-SDI signal to an LC fiber output in resolutions up to 1080p. Transmit the output signal up to six miles at the max resolution over a single-mode fiber cable, and monitor the signal locally over a 3G-SDI loop output. AJA's FiDO-T features one 3G-SDI input, one LC optical fiber output, and one 3G-SDI loop output, in a compact body suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding FiDO Mini Converter.

Features

- Small enough to fit behind a monitor, back of a rack, or directly on a camera rig

- Autodetection of video format

- Equalized and reclocked input

- ASI compatible

- Meets all relevant SMPTE specifications

- Locking power connector

- 1.5W power consumption

- Includes 5-20V worldwide power supply with four interchangeable plug adapters

	Specifications
	Formats	3 Gbps, 1.5 Gbps, 270 Mbps (automatically selected based on input)
	Input	1 x 3G/HD/SD-SDI on BNC
	Output	1 x LC optical fiber 1 x 3G/HD/SD-SDI loop-out on BNC
	Supported Resolution	Up to 1920 x 1080p
	Power	5-20 VDC
	Power Consumption	1.5 W
	Dimensions	4.6 x 1.7 x 0.9" (12 x 4.3 x 2.4 cm)
