AJA - Single-channel Optical Fiber to SD/HD/3G SDI
AJA FiDO-R-SC-R0 - Single-channel Optical Fiber to SD/HD/3G SDI
5032
0892448000458
Single-channel Optical Fiber (SC connector) to SD/HD/3G SDI with Dual SD/HD/3G SDI outputs
Visuals Price
527.96 CHF
VAT excl.
570.73 CHF Inc. VAT
Manufacturer price 555,75 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks

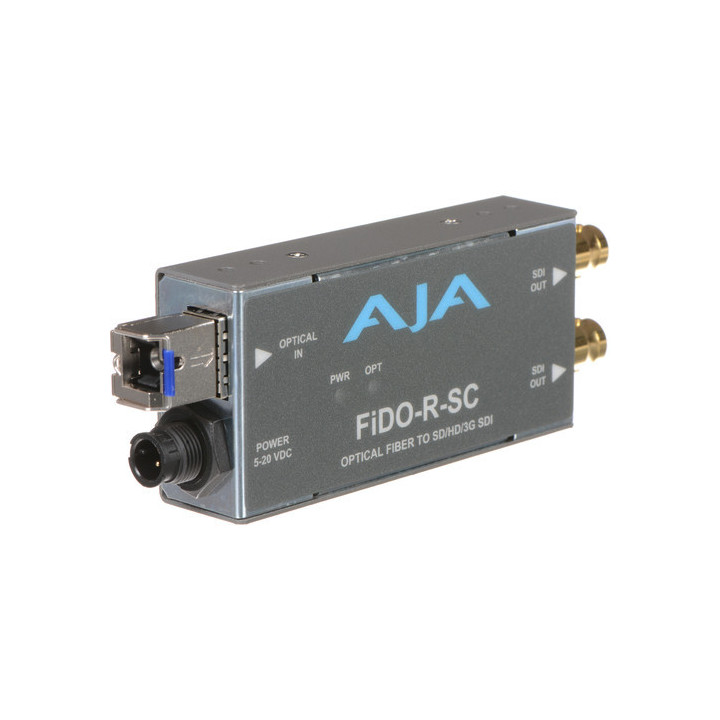

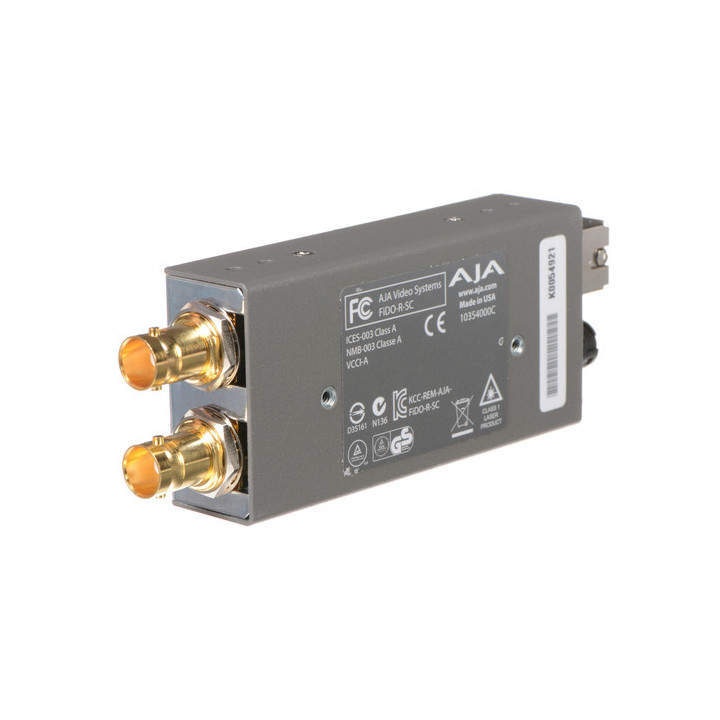

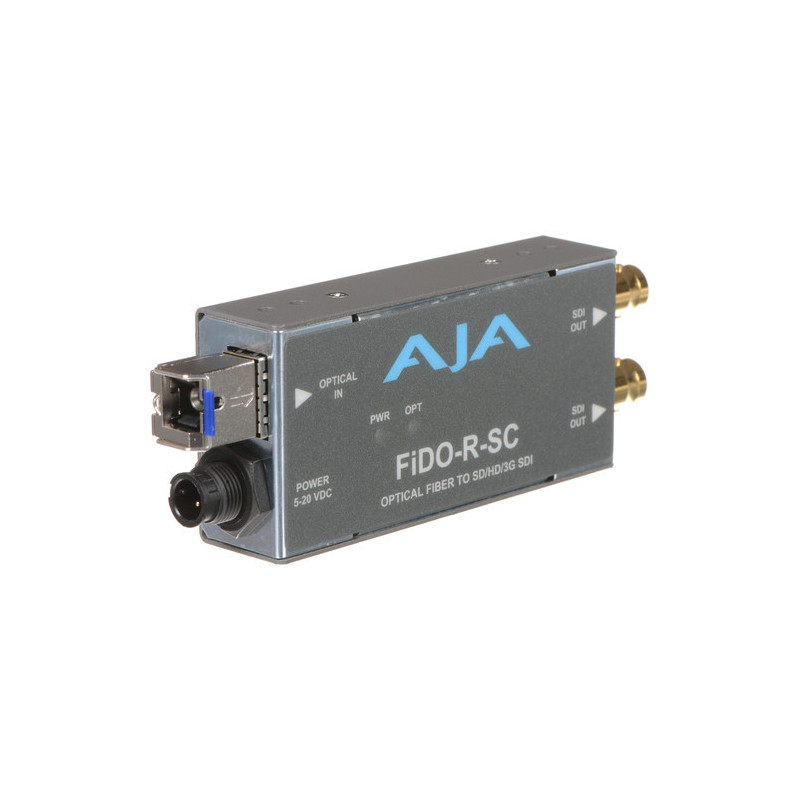

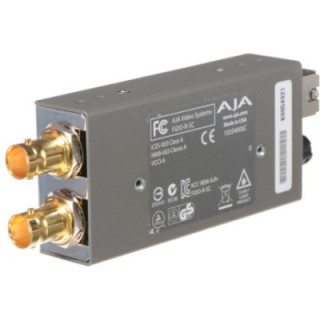

AJA Single-channel Optical Fibre to SD/HD/3G SDI
Convert an SC fibre signal into two simultaneously active 3G-SDI outputs with resolutions up to 1080p. Transmit the input signal up to ten kilometres at maximum resolution on a single-mode fibre cable. AJA's FiDO-R-SC features one SC optical fibre input and two 3G-SDI outputs, in a compact enclosure suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding Mini FiDO converter.
Features
- Compact enough to be installed behind a monitor, at the back of a rack or directly on a camera mount
- Automatic video format detection
- Equalised and re-clocked input
- ASI compatible
- Complies with all relevant SMPTE specifications
- Locking power connector
- Power consumption of 1.5W
- Includes a worldwide 5-20V power supply with four interchangeable plug adapters
|
|
Specifications |
|
|
Formats |
3 Gbps, 1.5 Gbps, 270 Mbps (automatic selection based on input) |
|
|
Input |
1 x SC optical fibre |
|
|
Output |
2 x 3G/HD/SD-SDI on BNC |
|
|
Supported resolution |
Up to 1920 x 1080p |
|
|
Power supply |
5-20 VDC |
|
|
Power consumption |
1.5 W |
|
|
Dimensions |
4.6 x 1.7 x 0.9" (12 x 4.3 x 2.4 cm) |
