Sony - 3G Fiber Adaptor for HDC Series Cameras

Sony HDCU-5500//U - 3G Fiber Adaptor for HDC Series Cameras

1013510
5013493392649
Sony HDCU-5500//U - 3G Fiber Adaptor for HDC Series Cameras
Sony HDCU-5500//U - 3G Fiber Adaptor for HDC Series Cameras
Sony HDCU-5500//U - 3G Fiber Adaptor for HDC Series Cameras
Sony HDCU-5500//U - 3G Fiber Adaptor for HDC Series Cameras
3G Fiber Adaptor for HDC Series Cameras to connect to 1x 3G HDCUEnable to transmit 2x 1080/50i-25p-24p or 1x 1080/50p or 1x 1080/50i RGB 4:4:4 signals
... learn more
PRICE ON REQUEST
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks
Please contact us
Sony Portable Fibre CCU for HDC-5500
IP-compatible camera control unit (CCU) for HDC-5500 4K/HD system camera

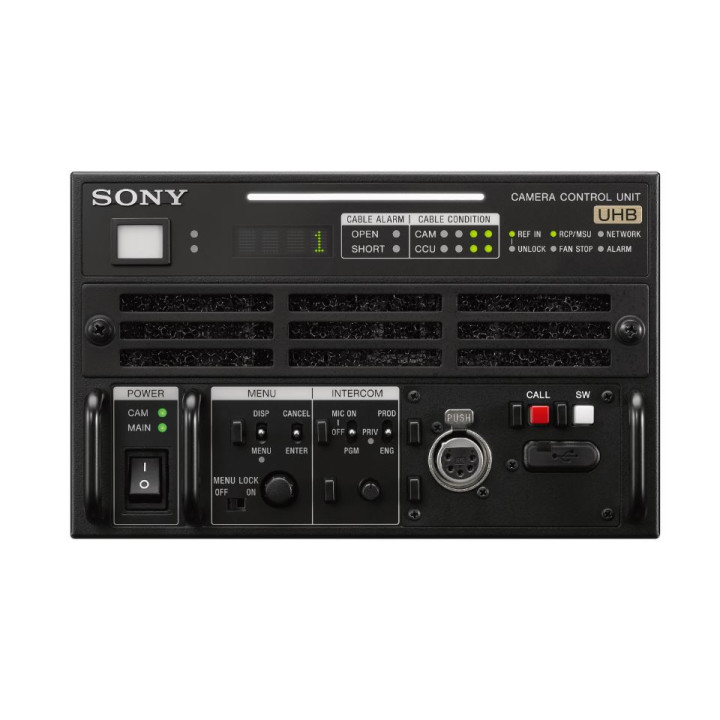

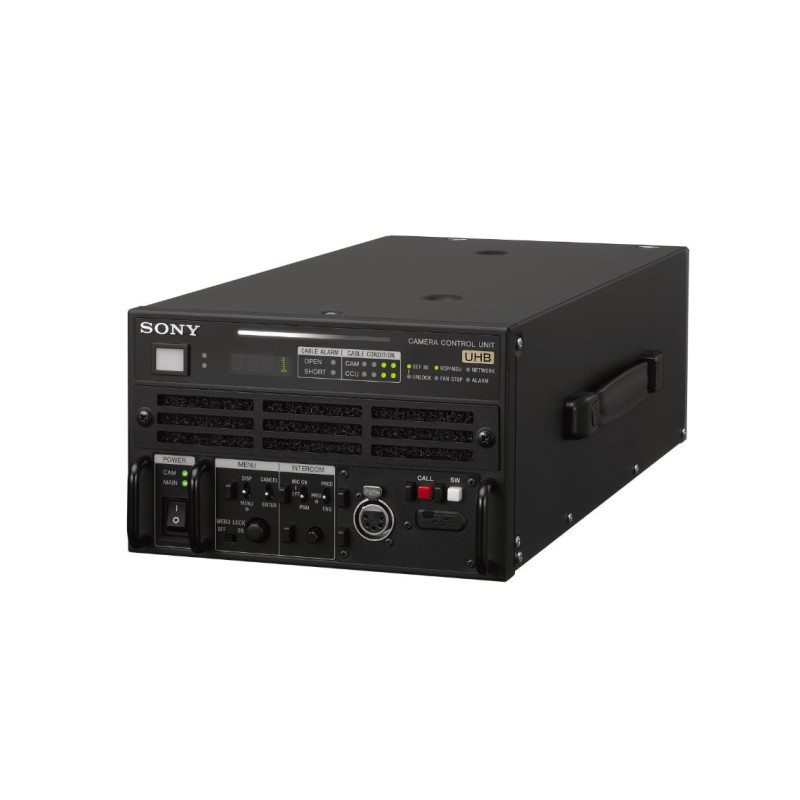

The HDCU-5500 camera control unit is designed to operate with the Sony HDC-5500 4K/HD system camera. It provides interfaces to external equipment and camera power supply in a compact and portable 3U half-rack format, ideal for outdoor production environments.
Offering a 12G-SDI output interface and 4K as standard, the CCU also provides a path to optional IP and 12G-SDI capabilities, including IP on HDC series optical fibre studio cameras.
Combined with the HDC-5500 camera, the HDCU-5500 enables two 4K signal lines of ultra high bitrate (UHB) optical fibre transmission, supporting shooting in various capture formats with an additional 4K video line.
IP Tally support (TSL UMD v5.0) is included as standard, whilst CCU menu settings can be remotely adjusted via a network.
Features
Compact housing, powerful capabilities
This CCU offers 4K and IP in a compact half-rack housing.
High-quality long-distance signal transmission
Combined with the optional HKCU-SM50 interface kit, the compact HDCU-5500 can be directly connected using 3G single-mode fibre (SMF) for long-distance transmission of up to 10 km, making it ideal for space-limited operations such as broadcast trucks.
MENU adjustment from a web browser
The CCU supports menu control from a web browser. Status monitoring of multiple CCUs, import/export of settings files and remote firmware updates enhance operational efficiency and convenience.
IP-ready
The optional HKCU-SFP50 IP interface kit adds ST 2110 4K/HD video/audio IP capabilities and IP intercom.
Ultra high bitrate transmission
The newly developed UHB (Ultra High Bitrate) transmission achieves exceptional 4K image quality and 4K TRUNK/4K PROMPTER transmission in a single hybrid fibre cable. This enables the 4K system to be extended in a simple system configuration.



Specifications



General



Required power supply

100 V to 240 V AC, 50/60 Hz

Current consumption

4.5 A (max.)

Operating temperature

–10 °C to +40 °C (14 °F to +104 °F)

Storage temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Weight

Approx. 6.4 kg (14 lb 1.8 oz)

Input / output connectors



CAMERA FIBRE

Optical fibre connector (x1)

CAMERA TRIAX

No

INTERCOM/TALLY/IO PORT

50-pin D-sub connector (x1), INTERCOM (PROD/ENG), 4 W: 0 dBu, RTS: 0 dBu, CC: –14 dBu, PGM, 3 systems, 0dBu/–20dBu, TALLY (R, G, Y), FLAG

RCP / CNU

8-pin multi-pin connector (x1)

TRUNK

12-pin (x1)

LAN-COM

8-pin (x1)

NETWORK TRUNK

8-pin (x1)

SDI I/O 1 to 4

3G/HD/SD-SDI I/O, BNC (x4), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps/1.4835 Gbps

REFERENCE IN/OUT

BNC (x2), loopthrough output, HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω) or NTSC 10F-BB

Input connectors



AC INPUT

100 V to 240 V AC (x1)

SDI RET 1 to 4

BNC (x4), 3G-SDI: SMPTE ST424/425, 2.970 Gbps/2.967 Gbps, HD-SDI: SMPTE ST292, 1.485 Gbps/1.4835 Gbps, SD-SDI: SMPTE ST259, 270 Mbps

PROMPTER and PROMPTER 2 / VBS-RET

BNC (x2), loopthrough output in 1CH mode, internal 75 Ω termination in 2CH mode, analogue signal, 1.0 Vp-p, 75 Ω

Output connectors



AUDIO OUTPUT CH1, CH2

3-pin XLR, male (x2), 0 dBu/ –20 dBu /+4 dBu

CHARACTER / ABS / EBU

BNC (x1), VBS, 1 Vp-p, 75 Ω
AES/EBU format
VBS/HD and AES/EBU selectable

SDI OUT 1 to 4

3G/HD/SD SDI OUTPUT, BNC (x4), 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps / 2.967 Gbps, HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps / 1.4835 Gbps
SD-SDI: SMPTE ST259, 0.8 Vp-p, 75 Ω, 270 Mbps, 3G-SDI / HD-SDI / SD-SDI, selectable character signal

UHD SDI A, B

12G / 6G / 3G / HD SDI OUTPUT, BNC (x2)
12G SDI: SMPTE ST2082, 0.8 Vp-p, 75 Ω, 11.88 Gbps / 11.868 Gbps
6G SDI: SMPTE ST2081, 0.8 Vp-p, 75 Ω, 5.940 Gbps / 5.934 Gbps
3G SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps / 2.967 Gbps
HD SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps / 1.4835 Gbps

UHD SDI C, D

12G / 6G / 3G / HD SDI I/O, BNC type (2)
12G SDI: SMPTE ST2082, 0.8 Vp-p, 75 Ω, 11.88 Gbps / 11.868 Gbps
6G SDI: SMPTE ST2081, 0.8 Vp-p, 75 Ω, 5.940 Gbps / 5.934 Gbps
3G SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 Ω, 2.970 Gbps / 2.967 Gbps
HD SDI: SMPTE ST292, 0.8 Vp-p, 75 Ω, 1.485 Gbps / 1.4835 Gbps



3G Fiber Adaptor for HDC Series Cameras to connect to 1x 3G HDCUEnable to transmit 2x 1080/50i-25p-24p or 1x 1080/50p or 1x 1080/50i RGB 4:4:4 signals
