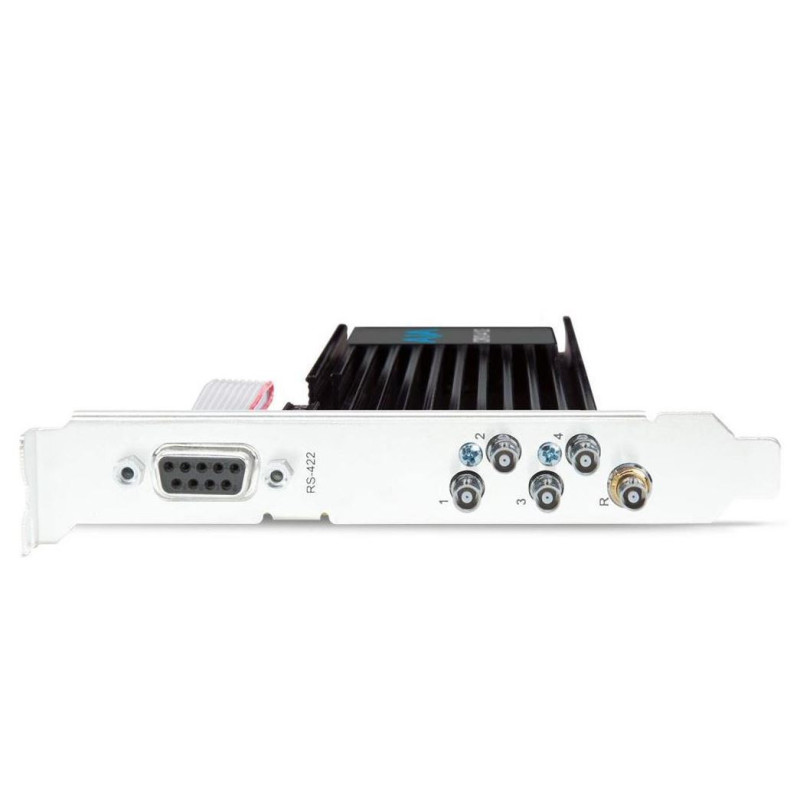

AJA CRV44-12G-R0-11 - 12G-SDI PCIe, x4 Ch I/O, Short Bracket

1018465
0812321032048
AJA CRV44-12G-R0-11 - 12G-SDI PCIe, x4 Ch I/O, Short Bracket
AJA CRV44-12G-R0-11 - 12G-SDI PCIe, x4 Ch I/O, Short Bracket
12G-SDI PCIe, x4 Ch I/O, Short Bracket, Passive Cooling, HDBNC
... learn more
Visuals Price
3,822.09 CHF VAT excl.

4,131.68 CHF Inc. VAT

Manufacturer price 4 023,25 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

AJA 12G-SDI PCIe, 4-channel I/O, short bracket
Take control of the most demanding projects with the immense power of the latest member of the Corvid range. The Corvid 44 12G is AJA's ultra-fast and compact 8-lane PCIe 3.0 I/O card with four bidirectional 12G-SDI HD-BNC connections, designed for today's most demanding video and audio workflows. The Corvid 12G 44 is available in multiple configurations, including full-height or low-profile, with passive cooling.
Whether you're working with HFR 8K/4K/Ultra HD, 2K/HD, SD, Deep Colour and/or HDR, enjoy the quality and peace of mind that the Corvid 44 12G brings to your projects. Supporting 10-bit 4:2:2 and 4:4:4 colour spaces, up to 12-bit, the Corvid 44 12G offers capture and output via 12G-SDI, which is also backwards compatible with 6G-SDI, 3G-SDI and 1.5G-SDI. The bidirectional 12G-SDI ports offer immense flexibility for simultaneous capture and playout for a range of solutions.
Multi-format 12G-SDI PCIe I/O card
The Corvid 44 12G features four bidirectional 12G-SDI sockets with a reference input. 8K input or output is possible using four 12G-SDI cables and 4K/Ultra HD I/O can be achieved with a single 12G-SDI or 6G-SDI cable or four 3G-SDI cables. 2K/HD I/O can be achieved with a single SDI cable or dual link SDI cable, whilst allowing simultaneous capture and monitoring via SDI.
Flexible frame rate support
The Corvid 44 12G supports 8K (8192 x 4320) and Ultra HD2 (7680 x 4320) workflows at high frame rate (HFR) up to 50/60p for the most demanding applications. Cinema frame rates of 23.98, 24, 47.95 and 48p are also supported in 8K, 4K and 2K. High frame rates are not limited to 8K and Ultra HD2 with the Corvid 44 12G, multiple 4K, Ultra HD, 1080p and 720p HD inputs and outputs are also supported at frame rates up to 50/60p, making the Corvid 12G extremely flexible for your current and future needs.
Hardware keying
The integrated downstream hardware keyer enables easy overlay of graphics and images on the input video in real-time.
LTC and reference input
The Corvid 44 12G provides a switchable external LTC/Reference input connection on the rear of the card. A second LTC input is available on an internal connector to provide an additional reference to the Corvid 44 12G.
RS-422
An integrated RS-422 connection is available either as an external connection on the full-height Corvid 44 12G, or as an internal connection on the low-profile Corvid 44 12G. RS-422 enables control of external devices for precise frame-by-frame capture and transfers.




Specifications



Video formats

(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(Ultra HD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

Video formats (continued)

(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Digital video inputs

12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
6G-SDI, SMPTE-2081, 10-bit and 8-bit
3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
4K/Ultra HD 4:4:4 (4x HD BNC)
1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x HD BNC), 12-bit, 10-bit and 8-bit
1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x HD BNC), 10-bit and 8-bit

Digital video outputs

12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
6G-SDI, SMPTE-2081, 10-bit and 8-bit
3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit
4K/Ultra HD 4:4:4 (4x HD BNC)
1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x HD BNC), 12-bit, 10-bit and 8-bit
1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x HD BNC), 10-bit and 8-bit

SDI I/O

SDI connections are bidirectional
2K/HD, capture and monitoring are simultaneous
4K/Ultra HD with 12G-SDI, capture and monitoring are simultaneous.
4K/Ultra HD with 3G-SDI, all four connections must be used for either input or output.
8K/UHD2 with 12G-SDI, connections must be used for either input or output.
Note: When connections are configured for 12G-SDI or 6G-SDI, only Ultra HD/4K/UHD2/8K formats are supported

Digital audio inputs

16 channels, 24-bit and 16-bit embedded SDI audio, 48 kHz sample rate, synchronous

Digital audio outputs

16 channels, 24-bit embedded SDI audio, 48 kHz sample rate, synchronous

Downstream keyer

Supports graphics with alpha channel over video, matte or framebuffer or framebuffer content over incoming video or matte up to Ultra HD/4K

Reference

Analogue black (1V) or Composite sync (2 or 4V) or HD Tri-Level sync (1V) via 1x HD-BNC on PCIe bracket
Reference input is terminated at 75 Ohms when Genlock is set to Ref In

Timecode

LTC timecode input via 2-pin connector on PCIe card

Electrical interface

PCIe 3.0 8-lane

Machine control

RS-422, Sony 9-pin protocol via connector on PCIe card

Noise

Ultra-quiet (virtually inaudible)
Passive cooling requires a minimum airflow of 150 LFM (linear feet per minute) at 30°C in the host/chassis

Power

25W typical, 32W maximum
Internal PC ATX power connector

Safe operating temperature

0 to 40°C (32 to 104°F)

Safe storage temperature (powered off)

-40 to 60°C (-40 to 140°F)

Operating relative humidity

10-90% non-condensing

Operating altitude

<3,000 metres (<10,000 feet)

Dimensions (W x D x H)

19 x 178 x 80 mm (0.75 x 7.0 x 3.15")

Weight

0.6 lb (0.3 kg)
