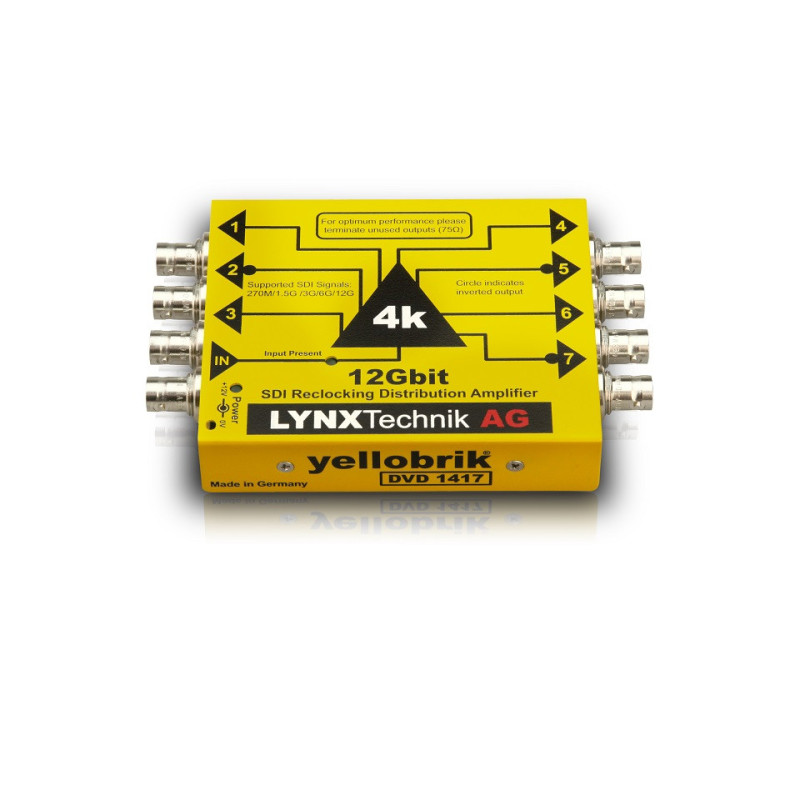

Lynx D VD 1417 - SDI Dustribution Amplifier
624.82 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
|
|
Specifications |
|
|
Input |
1 x SDI; 75 Ohm BNC connector |
|
|
|
SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082 |
|
|
|
Multi-standard operation from 270Mbit/s to 12Gbit/s; resynchronisation |
|
|
|
LED indication of input presence |
|
|
|
Electrical return loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz, >7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz |
|
|
|
Automatic cable equalisation (Belden xxxx cable) 400m @ 270Mbit/s, 200m @ 1.5Gbit/s, 150m @ 3Gbit/s (Belden 1694A cable) 90m @ 6Gbit/s; 80m @ 12Gbit/s (Belden 4794R cable) |
|
|
Outputs |
7 x multi-rate resynchronised SDI outputs; 75 Ohm BNC connectors |
|
|
|
SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082 |
|
|
|
Electrical return loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz, >7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz |
|
|
|
Alignment jitter < 0.2 UI @ 270Mbit/s, < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @ 3Gbit/s, 6Gbit/s, 12Gbit/s |
|
|
|
Timing jitter < 0.2 UI @ 270Mbit/s, < 1.0 UI @ 1.5Gbit/s, < 2.0 UI @ 3Gbit/s, 6Gbit/s, 12Gbit/s |
|
|
Power Supply |
+12VDC @ 2.7W nominal - (supports input range of 7 - 16VDC) |
|
|
Physical Characteristics |
Dimensions: 138mm x 90mm x 22mm (5.43" x 3.54" x 0.86") connectors included Weight: 240g (8.46oz) |
|
|
Environment |
5 - 40ºC (41 - 104ºF) 90% humidity (non-condensing) |
|
|
Included |
Module, mains power supply |
