Yamaha SWP1-16MMF - Network switch
167560
4957812588348

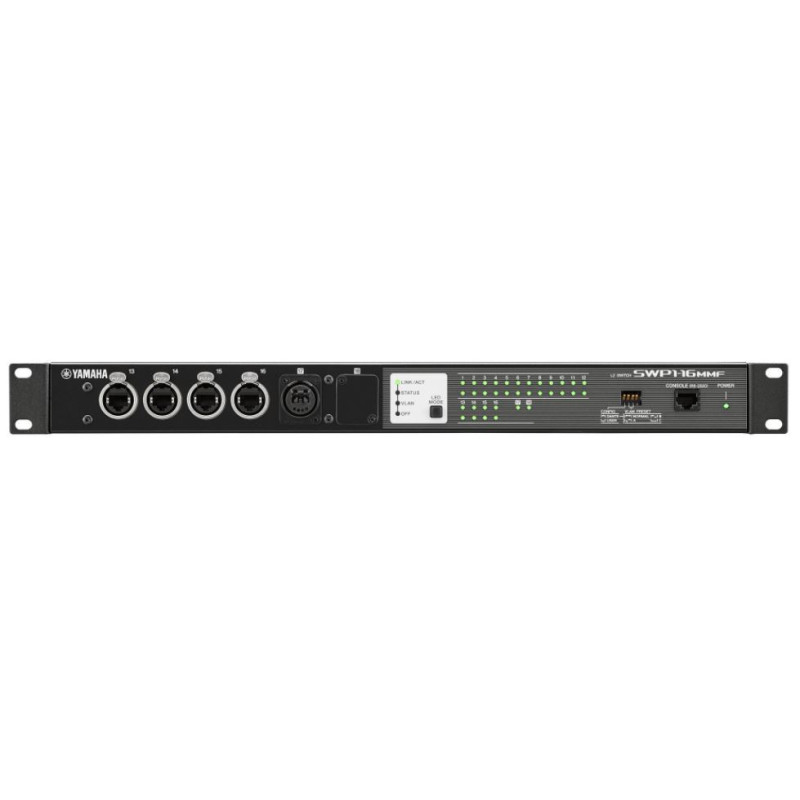

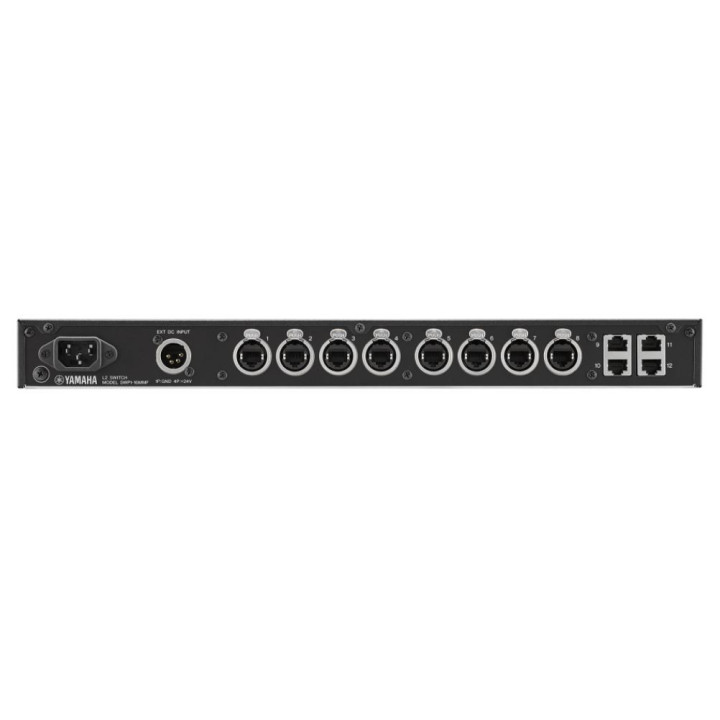

Network switch equipped with 12 etherCON ports, four RJ45 ports, one opticalCON port, and one option slot
Visuals Price
2,329.36 CHF
VAT excl.
2,518.04 CHF Inc. VAT
Manufacturer price 2 647,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Yamaha network switch
Yamaha Switches with Dante Optimisation and Network Visibility
The complex configuration of a network switch, which was previously best left to an IT technician, can now be easily carried out by anyone. A simple switch setting is all it takes to optimise the SWP1 series network switches for Dante operation, and a dedicated computer application called Yamaha LAN Monitor offers "network visibility" for comprehensive monitoring and control.
Yamaha entered the network equipment domain in 1995 and acquired a significant share of the network market for small and medium-sized businesses and SOHO in Japan. Yamaha's Gigabit L2 switches, which can be linked to Yamaha routers/firewalls, were introduced in 2011, with features that significantly reduced the workload for network configuration, maintenance and management.
20 years later, audio networking has become one of the fastest-growing and most appreciated technologies in the live sound and professional audio field. A growing range of Dante-compatible Yamaha products, including the highly regarded CL series digital mixing consoles, continues to lead the way. The SWP1 series network switches are a solution the professional audio market has been waiting for, offering an ideal balance of IT expertise and professional audio know-how that only Yamaha can provide.
The SWP1 series makes configuring, monitoring and operating audio networks easier and more convenient than ever.
Dante Optimisation via DIP Switch
Simple Dante networks are not difficult to configure and operate, but as network complexity increases, the switches used must be optimised for Dante operation in order to achieve maximum stability. Configuring QoS, IGMP Snooping and other parameters on a smart switch can be a complex task, requiring specialist knowledge that falls more within the domain of IT technicians than sound engineers. The SWP1 series allows a Dante-optimised configuration to be recalled simply by activating a DIP switch. No expertise or training is required.
3 Types of Preset VLAN
A truly effective network must be able to handle multiple services simultaneously: Dante communication, StageMix functions and other smart devices, computer software for digital mixing console or power amplifier control, and possibly more. But the more communications you combine on a single network, the higher the risk of interference and problems. Using virtual VLAN domains to isolate different types of data is the ideal solution, but this type of configuration also requires a degree of IT expertise. The SWP1 series includes three VLAN presets that can simply be selected via a DIP switch. There is also a USER mode that allows fully customised VLAN configuration.
Network Visibility
Effective management of a Dante network relies on a range of parameters such as network traffic, switch status and information about each Dante device. The dedicated Yamaha LAN Monitor application provides a comprehensive overview on a single screen of all the necessary parameters when used with SWP1 series switches. We call this type of graphical overview "network visibility". You can even take a snapshot of the normal network state and set an alarm to alert you if parameters change, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from Yamaha LAN Monitor with a single click, providing a complete Dante network solution on a single computer.
etherCON Connectors for Live Sound Reliability
Reliability is essential in live sound applications. Nothing must interrupt the show. Conventional network switches typically have RJ45 connectors to match the connectors of the computers they will be connected to, but the SWP1 series is equipped with durable and reliable etherCON connectors that are directly compatible with the etherCON connectors on Yamaha CL/QL consoles and other Dante-compatible devices.
Optical Fibre Support and Network Redundancy (option required for redundancy)
The SWP1-8MMF and SWP1-16MMF include opticalCON connectors compatible with multimode fibre. Both models allow transmission over distances of up to 300 metres. The optional MMF-SWP1 optical module can be added to enable the use of two optical fibre cables for a redundant connection. The Rapid Spanning Tree Protocol (RSTP) is also supported for redundant connections.
EXT DC INPUT for Power Redundancy
SWP1 series switches include an XLR-4-32 type EXT DC INPUT connector in addition to the standard AC IN connector. A +24V DC power supply connected to the EXT DC INPUT connector provides redundant power that can keep the device operational in the event of a problem with the mains power supply. For added reliability, the AC connector is of the locking type (V-Lock), which minimises the risk of accidental disconnection.
Yamaha SWP1 series network switches have been specifically created to offer users maximum benefits with the greatest ease of configuration and use possible. They enable one-click Dante optimisation as well as advanced network visibility whilst fully exploiting Dante's audio stream management capabilities. Yamaha LAN Monitor software works with the SWP1 series to enable comprehensive monitoring and management not only of connected SWP1 series switches, but also of connected Dante devices. Yamaha's original L2MS (Layer 2 Management Service) protocol extends "network visibility" capability to all Dante devices connected to SWP1 series switches.
LAN Mapping for a Complete Network Overview
Understanding how multiple switches installed in different locations are connected, as well as how network devices are connected to those switches, can be a difficult and time-consuming task. Yamaha LAN Monitor makes the overall network topology clearly visible, giving the user a complete overview of how multiple Dante network switches and devices are interconnected. Simply connect a computer to the nearest SWP1 switch and launch the Yamaha LAN Monitor software.
Port Status and Bandwidth Usage
Yamaha LAN Monitor includes a port status and bandwidth display that clearly shows the connection status of each network switch port, information about connected devices, the communication speed of each port and the bandwidth usage of each port.
Dante Device Information
Device information and monitoring is also available for all Dante devices connected to SWP1 series switches on the network. The ability to monitor the status of primary and secondary ports as well as transmit and receive streams is important for ensuring stable and reliable Dante audio communication. This feature allows you to keep an eye on the overall "health" of the network.
One-Click Launch of Dante Controller
A Dante Controller button at the top of the Yamaha LAN Monitor interface allows you to launch Dante Controller with a single click (Dante Controller software must be installed on the computer). The seamless switch between Yamaha LAN Monitor and Dante Controller provides complete control of the Dante network from a single computer.
The Snapshot Function Simplifies Troubleshooting
A "snapshot" can be taken of the network state during configuration. The software can then automatically track parameters and alert the user if they change. A snapshot could be taken of the network during rehearsal, and the user would then be alerted if a cable is unplugged, a device is switched off or an incorrect connection is made before the performance, for example.
Enhanced Device Identification with Icons, Labels and Comments
Identifying devices connected to a switch solely by their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device identifier previously configured via Dante Controller software. You can also enter additional information, such as the device location, in the Label and Comment fields.
Detailed Switch Settings and Firmware Updates
The web interface of each device can be accessed to view "advanced" settings and enable firmware updates.
Yamaha Switches with Dante Optimisation and Network Visibility
The complex configuration of a network switch, which was previously best left to an IT technician, can now be easily carried out by anyone. A simple switch setting is all it takes to optimise the SWP1 series network switches for Dante operation, and a dedicated computer application called Yamaha LAN Monitor offers "network visibility" for comprehensive monitoring and control.
Yamaha entered the network equipment domain in 1995 and acquired a significant share of the network market for small and medium-sized businesses and SOHO in Japan. Yamaha's Gigabit L2 switches, which can be linked to Yamaha routers/firewalls, were introduced in 2011, with features that significantly reduced the workload for network configuration, maintenance and management.
20 years later, audio networking has become one of the fastest-growing and most appreciated technologies in the live sound and professional audio field. A growing range of Dante-compatible Yamaha products, including the highly regarded CL series digital mixing consoles, continues to lead the way. The SWP1 series network switches are a solution the professional audio market has been waiting for, offering an ideal balance of IT expertise and professional audio know-how that only Yamaha can provide.
The SWP1 series makes configuring, monitoring and operating audio networks easier and more convenient than ever.
Dante Optimisation via DIP Switch
Simple Dante networks are not difficult to configure and operate, but as network complexity increases, the switches used must be optimised for Dante operation in order to achieve maximum stability. Configuring QoS, IGMP Snooping and other parameters on a smart switch can be a complex task, requiring specialist knowledge that falls more within the domain of IT technicians than sound engineers. The SWP1 series allows a Dante-optimised configuration to be recalled simply by activating a DIP switch. No expertise or training is required.
3 Types of Preset VLAN
A truly effective network must be able to handle multiple services simultaneously: Dante communication, StageMix functions and other smart devices, computer software for digital mixing console or power amplifier control, and possibly more. But the more communications you combine on a single network, the higher the risk of interference and problems. Using virtual VLAN domains to isolate different types of data is the ideal solution, but this type of configuration also requires a degree of IT expertise. The SWP1 series includes three VLAN presets that can simply be selected via a DIP switch. There is also a USER mode that allows fully customised VLAN configuration.
Network Visibility
Effective management of a Dante network relies on a range of parameters such as network traffic, switch status and information about each Dante device. The dedicated Yamaha LAN Monitor application provides a comprehensive overview on a single screen of all the necessary parameters when used with SWP1 series switches. We call this type of graphical overview "network visibility". You can even take a snapshot of the normal network state and set an alarm to alert you if parameters change, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from Yamaha LAN Monitor with a single click, providing a complete Dante network solution on a single computer.
etherCON Connectors for Live Sound Reliability
Reliability is essential in live sound applications. Nothing must interrupt the show. Conventional network switches typically have RJ45 connectors to match the connectors of the computers they will be connected to, but the SWP1 series is equipped with durable and reliable etherCON connectors that are directly compatible with the etherCON connectors on Yamaha CL/QL consoles and other Dante-compatible devices.
Optical Fibre Support and Network Redundancy (option required for redundancy)
The SWP1-8MMF and SWP1-16MMF include opticalCON connectors compatible with multimode fibre. Both models allow transmission over distances of up to 300 metres. The optional MMF-SWP1 optical module can be added to enable the use of two optical fibre cables for a redundant connection. The Rapid Spanning Tree Protocol (RSTP) is also supported for redundant connections.
EXT DC INPUT for Power Redundancy
SWP1 series switches include an XLR-4-32 type EXT DC INPUT connector in addition to the standard AC IN connector. A +24V DC power supply connected to the EXT DC INPUT connector provides redundant power that can keep the device operational in the event of a problem with the mains power supply. For added reliability, the AC connector is of the locking type (V-Lock), which minimises the risk of accidental disconnection.
Yamaha SWP1 series network switches have been specifically created to offer users maximum benefits with the greatest ease of configuration and use possible. They enable one-click Dante optimisation as well as advanced network visibility whilst fully exploiting Dante's audio stream management capabilities. Yamaha LAN Monitor software works with the SWP1 series to enable comprehensive monitoring and management not only of connected SWP1 series switches, but also of connected Dante devices. Yamaha's original L2MS (Layer 2 Management Service) protocol extends "network visibility" capability to all Dante devices connected to SWP1 series switches.
LAN Mapping for a Complete Network Overview
Understanding how multiple switches installed in different locations are connected, as well as how network devices are connected to those switches, can be a difficult and time-consuming task. Yamaha LAN Monitor makes the overall network topology clearly visible, giving the user a complete overview of how multiple Dante network switches and devices are interconnected. Simply connect a computer to the nearest SWP1 switch and launch the Yamaha LAN Monitor software.
Port Status and Bandwidth Usage
Yamaha LAN Monitor includes a port status and bandwidth display that clearly shows the connection status of each network switch port, information about connected devices, the communication speed of each port and the bandwidth usage of each port.
Dante Device Information
Device information and monitoring is also available for all Dante devices connected to SWP1 series switches on the network. The ability to monitor the status of primary and secondary ports as well as transmit and receive streams is important for ensuring stable and reliable Dante audio communication. This feature allows you to keep an eye on the overall "health" of the network.
One-Click Launch of Dante Controller
A Dante Controller button at the top of the Yamaha LAN Monitor interface allows you to launch Dante Controller with a single click (Dante Controller software must be installed on the computer). The seamless switch between Yamaha LAN Monitor and Dante Controller provides complete control of the Dante network from a single computer.
The Snapshot Function Simplifies Troubleshooting
A "snapshot" can be taken of the network state during configuration. The software can then automatically track parameters and alert the user if they change. A snapshot could be taken of the network during rehearsal, and the user would then be alerted if a cable is unplugged, a device is switched off or an incorrect connection is made before the performance, for example.
Enhanced Device Identification with Icons, Labels and Comments
Identifying devices connected to a switch solely by their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device identifier previously configured via Dante Controller software. You can also enter additional information, such as the device location, in the Label and Comment fields.
Detailed Switch Settings and Firmware Updates
The web interface of each device can be accessed to view "advanced" settings and enable firmware updates.
|
|
Specifications |
|
|
Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T/etherCON connector) |
12 |
|
|
Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T/RJ-45 connector) |
4 |
|
|
Number of SFP ports (1000BASE-SX/opticalCON connector) |
2 (1 optical module installed as standard) |
|
|
Console port |
1 (RJ-45) |
|
|
Switching capacity |
36 Gbit/s |
|
|
Throughput |
27 Mpps |
|
|
Maximum number of MAC addresses |
16 384 |
|
|
Frame buffer |
1024 KB |
|
|
VLAN |
Port VLAN, VLAN tagging (IEEE802.1Q), private VLAN |
|
|
Maximum number of VLANs |
256 (VLAN ID 1-4,094) |
|
|
IP multicast |
IGMP Snooping (v1/v2/v3) |
|
|
QoS |
8 output queues, policy-based QoS, remarking (CoS, ToS, DSCP), scheduling (SP, WRR) |
|
|
Flow control |
IEEE802.3x (Full-duplex), flow control (Half-duplex) |
|
|
Supported functions |
Storm control, HOL blocking prevention, loop detection, ACL, SNMP agents, link aggregation (IEEE 802.3ad LACP, static), spanning tree (STP*, RSTP*, MSTP), port mirroring, port shutdown, link speed reduction, packet counter, energy saving mode (IEEE802.3az EEE; disabled in DANTE mode), DHCP client, logging, firmware download via TFTP/HTTP, configuration file download via TFTP |
|
|
DIP switches |
CONFIG, VLAN PRESET |
|
|
Indicators |
Front panel: POWER, MODE LED×4, PORT×16×2, SFP×2 |
|
|
Operating temperature |
0 to 40°C |
|
|
Storage temperature |
-20 to 60°C |
|
|
Power supply (AC IN connector) |
AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power input: lockable type |
|
|
Power supply (EXT DC INPUT) |
External power supply required: 24VDC+/-2V, 1A, XLR-4-32 type connector |
|
|
Maximum power consumption |
16 W, 0.29 A |
|
|
Heat dissipation |
14.0 kcal/h |
|
|
Chassis |
Metal housing, fanless |
|
|
Hazardous substance management |
RoHS compliant |
|
|
Dimensions |
480mm x 44mm x 362mm |
|
|
Weight |
4.6 kg |
Network switch equipped with 12 etherCON ports, four RJ45 ports, one opticalCON port, and one option slot
