Bluebell ShaxX-DUAL-XX - Dual Channel SMPTE Hybrid Alternative Connection Kit
1011932
Dual Channel SMPTE Hybrid Alternative Connection Kit - Used in conjunction with 2 x Shax-CCU; Allows 2 x hybrid fibre enabled cameras to be connected to the CCU over standard fibre networks.
Visuals Price
7,790.10 CHF
VAT excl.
8,421.10 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks

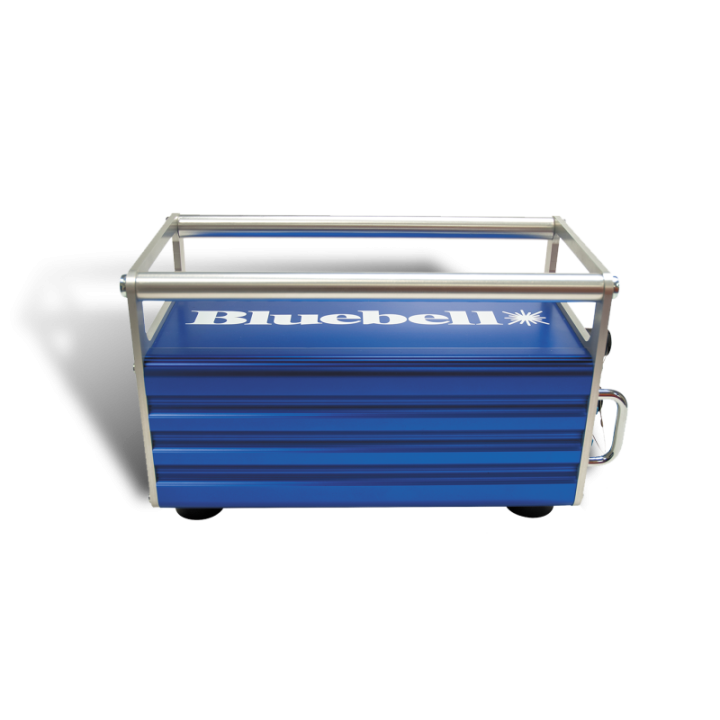

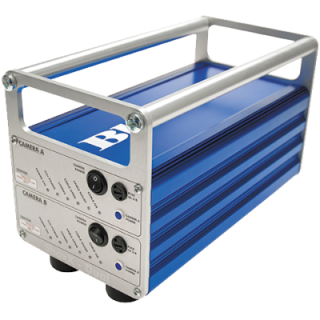

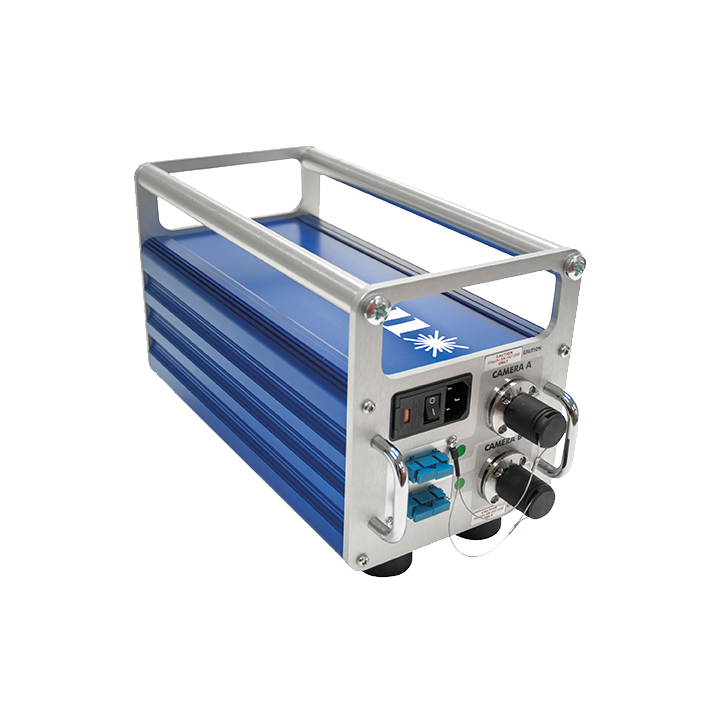

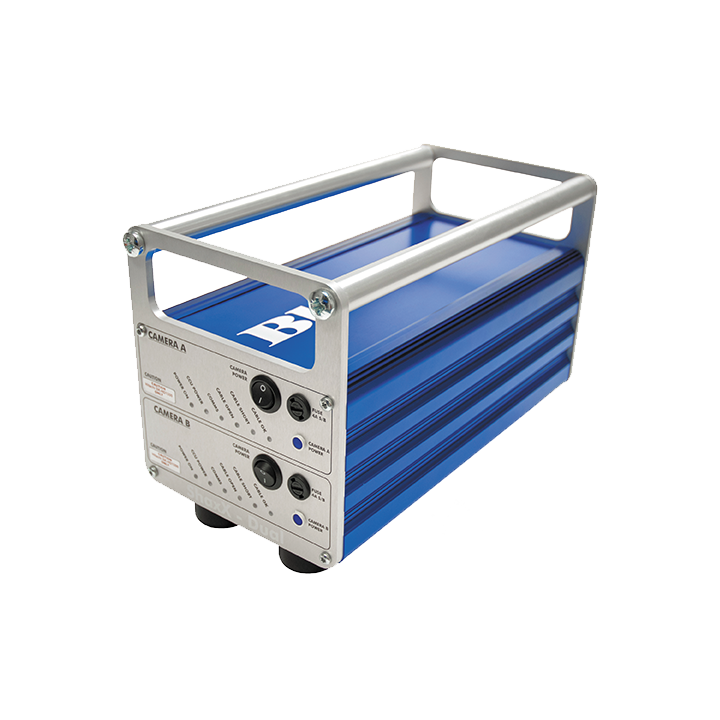

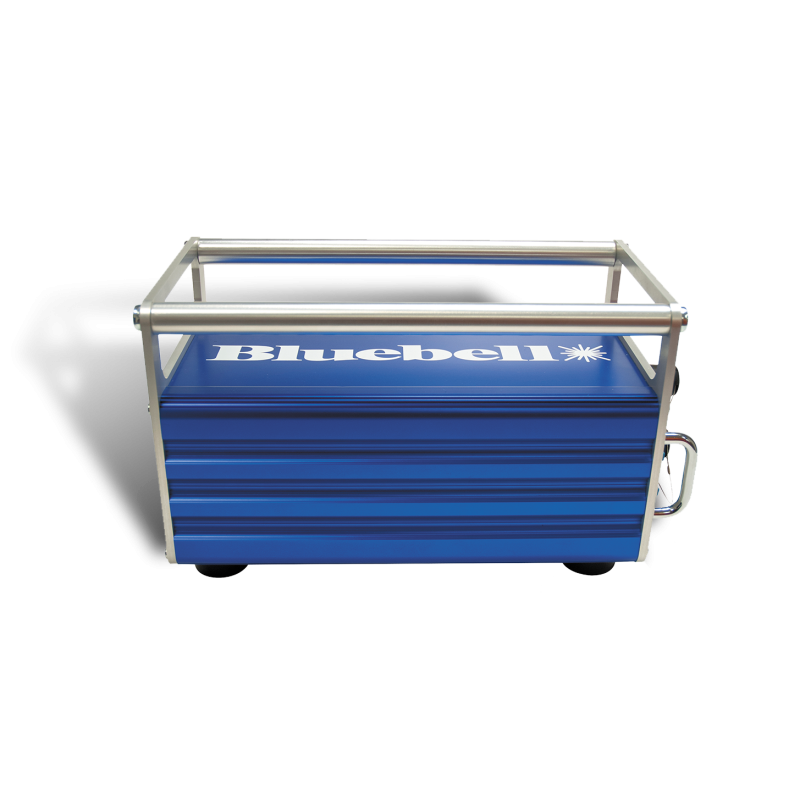

Bluebell dual channel SMPTE hybrid alternative connection kit
ShaxX-DUAL-XX
Dual channel SMPTE hybrid alternative connection kit.
Used in conjunction with 2 x Shax-CCU;
Enables 2 hybrid fibre cameras to be connected to the CCU via standard fibre networks.
Power is inserted into the hybrid cable.
The ShaxX system by Bluebell has been designed to provide power insertion to broadcast cameras equipped with standard SMPTE 304M hybrid connectors, thereby enabling them to be powered remotely via the hybrid cable.
The ShaxX-DUAL enables two cameras to be powered from a single mains supply via their own individual hybrid cables.
Power can be inserted and transferred to the remote camera which can be located up to 300m away.
When combined with the Shax-CCU, cameras can be deployed remotely using ordinary single-mode fibre optic network that may exist in a stadium.
The Shax-DUAL is switch-selectable between major camera manufacturers for easy deployment.
This system enables the user to replace the fibre/copper hybrid cable between the camera and CCU with a standard fibre cable and relay all communications and signals.
This frees the camera from the need to be connected to a local mains power supply.
The ShaxX/Shax system is perfect for stadiums, arenas and concert halls that have pre-installed fibre networks.
The ShaxX-DUAL is housed in a robust and reinforced aluminium case, ideally suited to outdoor broadcast and rapid deployment applications.
The ShaxX can also be combined with the BC series multi-format interfaces to transport signals from multiple cameras over a single cable.
This can help reduce and simplify setup and installation time.
Contact the sales office for additional information on available options.

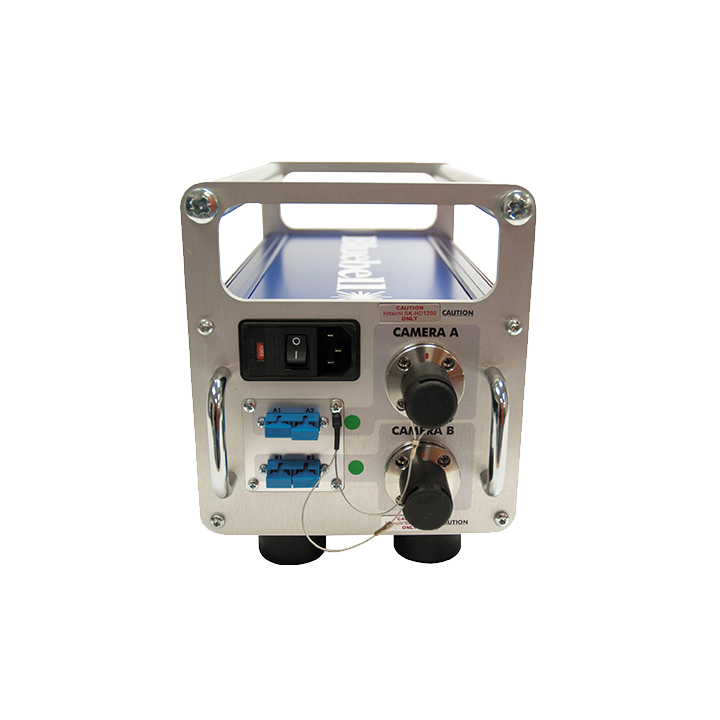

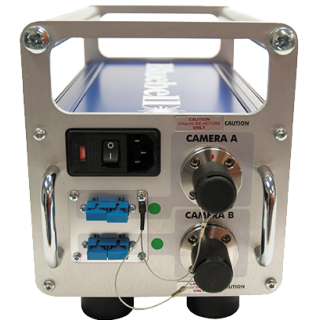

The front panel LEDs provide instant feedback on the operational status of the link between each camera and CCU.
|
|
Specification |
|
|
ShaxX-DUAL |
Camera side |
|
|
Connector |
2 x Lemo PHW 3K.93C Free socket |
|
|
Wavelength |
Independent |
|
|
Optical I/O |
|
|
|
Connector |
2 x ST female, SC, FC per camera |
|
|
Wavelength |
Independent |
|
|
Optical loss |
< 1 dB per end |
|
|
Mains input |
|
|
|
IEC mains input |
IP rating selectable 115 or 230 V AC. |
|
|
General specifications |
||
|
Dimensions |
320 x 200 x 170mm with handles |
|
|
Operating temp.: |
-20 to +60 °C |
|
|
CCU supply voltage |
36 V DC and 240 V AC |
|
|
Weight |
7.5 kg |
|
|
Compliance |
|
|
|
EMI/RFI: |
Complies with directive 89/336/EEC |
|
|
Electrical: |
Complies with standards EN 61000-6-1, EN61000-6-2 |
|
|
RoHS: |
Complies with directive 2002/95/EC |
|
|
IP rating |
IP50 |
|
*Key /XX
Replace -XX with -ST for ST/PC connector(s)
Replace -XX with -FC for FC/PC connector(s)
Replace -XX with -SC for SC/PC connector(s).
N.B. ST is the preferred standard stock item. For alternatives, contact the sales office.
*Note:
Units are supplied in multi-camera format as standard factory option. An individual front panel switch for each channel allows the user to adjust for Sony, Hitachi and Ikegami cameras. All Shax and ShaxX units are currently compatible with the following:
Sony HDC-900/950/1000/1500/1700/2500
Contact the sales office for compatibility with HDC-4300 and F55 cameras
Compatibility with Hitachi CU-HD1200 camera
Ikegami HDK-97GX Contact the sales office for other camera types or manufacturers.
