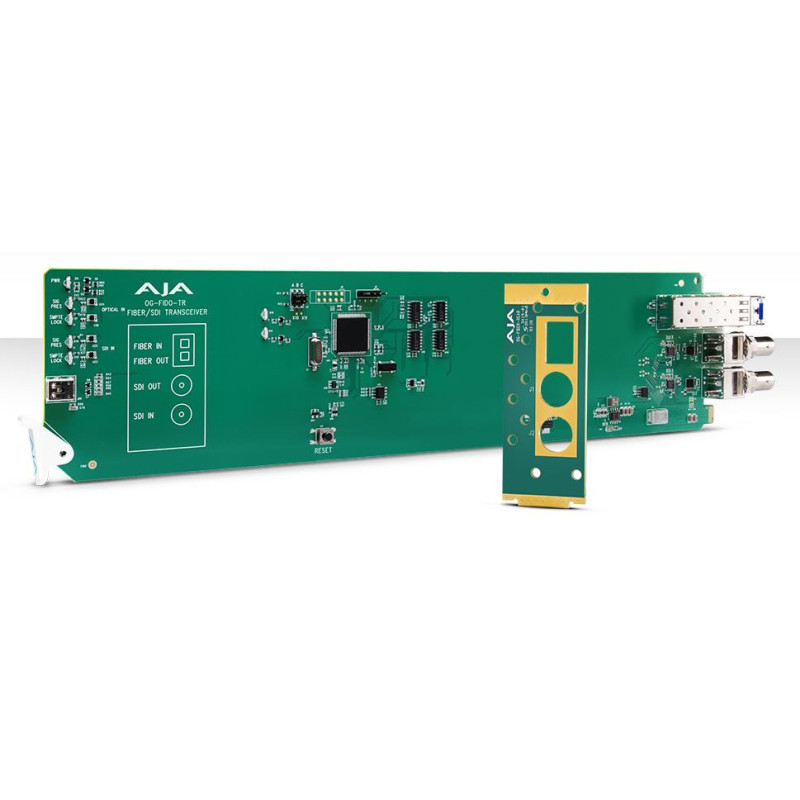

Aja transceiver 1 channel 3G SDI/LC single-mode fibre
The OG-FiDO-TR is a state-of-the-art 3G-SDI/Fibre transceiver, compatible with openGear. Both 3G-SDI to fibre and fibre to 3G-SDI conversions are supported.
openGear cards offer unparalleled flexibility and cost-effectiveness for 3G-SDI-Fibre conversion, enabling cable lengths of up to 10 km (32,808 feet) for single-mode.
Connectivity
Both fibre and 3G-SDI inputs are resynchronised with peak input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb and 3Gb are supported. Both signal paths are independent and can have different rates. Supports single-mode fibre cables.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear represents the future of chassis-based products.
Flexible I/O
Modular rear panel allows custom I/O connections per card (included with individual cards).
Built-in Security
Optional redundant power supply provides a secondary power source in the event of main power supply failure.
Ethernet Access
A standard Ethernet connection provides chassis access via the Dashboard application for global chassis communication.
|
|
Specifications
|
|
|
Video Formats
|
150 Mbps - 3 Gbps, format independent
|
|
Digital Video Input
|
1 independent 3G-SDI BNC input per channel, SMPTE-259/292/424
1 single-mode LC fibre input per channel, SMPTE-297
Nominal wavelength: 1260-1620 nm
Optical sensitivity: -18dBm (min)
Overload power: -3dBm (min)
|
|
Digital Video Output
|
-Independent 3G-SDI BNC output per channel, SMPTE-259/292/424
1 single-mode LC fibre output per channel, SMPTE-297
Nominal wavelength: 1310 nm
Optical power: -5dBm (min), 0dBm (max)
Extinction ratio: 7.5dB (typical)
|
|
Resynchronisation
|
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto-select
All other rates are passed through without resynchronisation
|
|
User Interface
|
openGear DashBoard network control software via Windows, macOS or Linux
|
|
Dimensions (w x d x h)
|
Standard openGear format, front slot and rear card. Two slots required for each card.
|
|
Weight
|
0.3 kg (0.5 lb)
|
|
Power Supply
|
Compatible with openGear chassis, 2.5 watts max per card
|
|
Environment
|
Safe operating temperature: 0 to 40 °C (32 to 104 °F)
Safe storage temperature (unpowered): -40 to 60 °C (-40 to 140 °F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: < 3,000 metres (< 10,000 feet)
|
