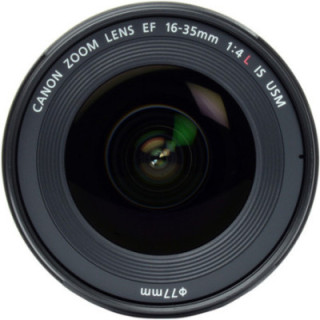

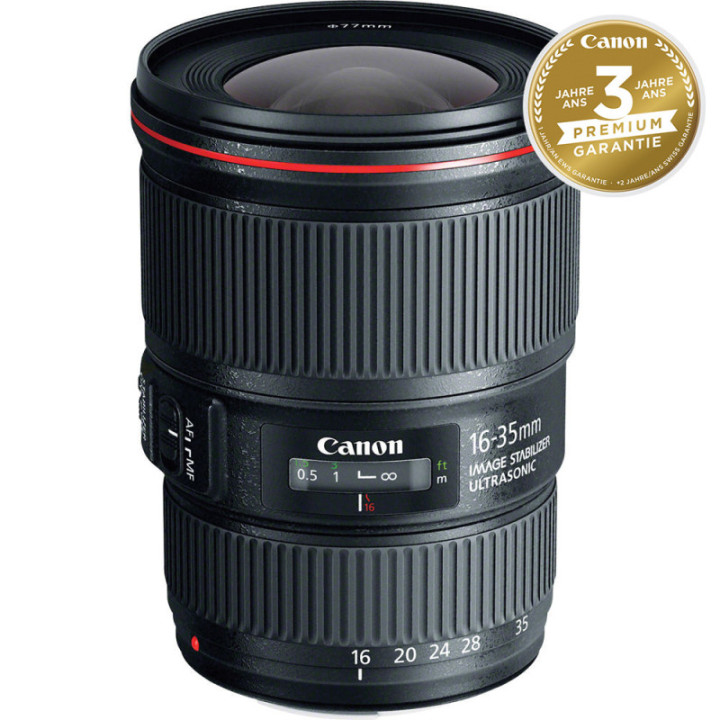

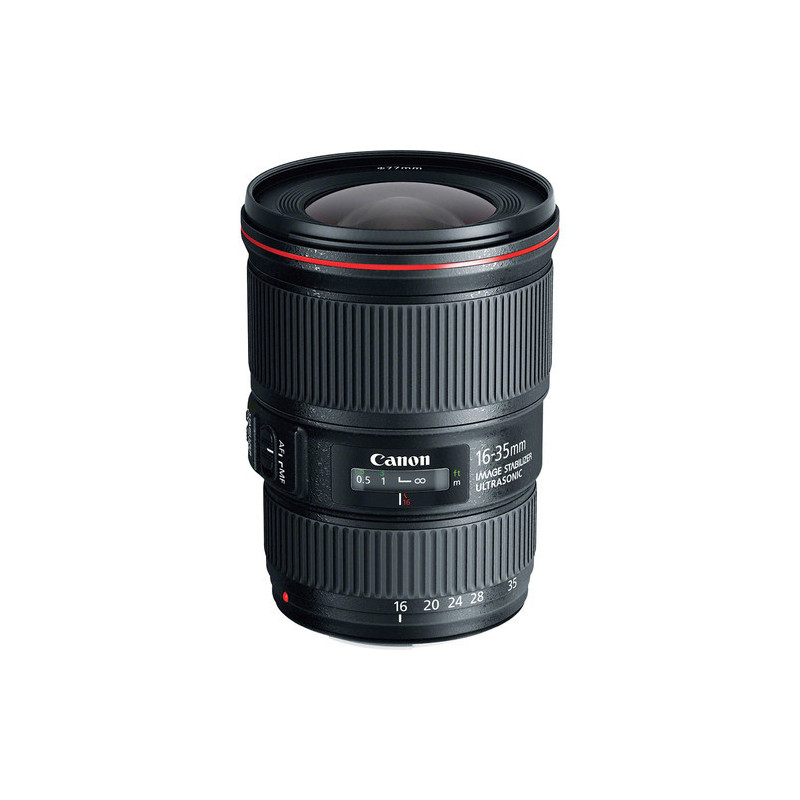

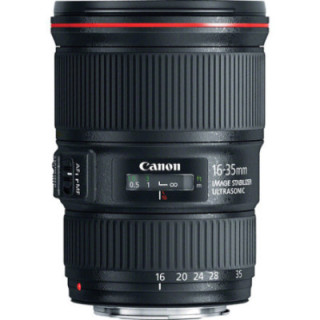

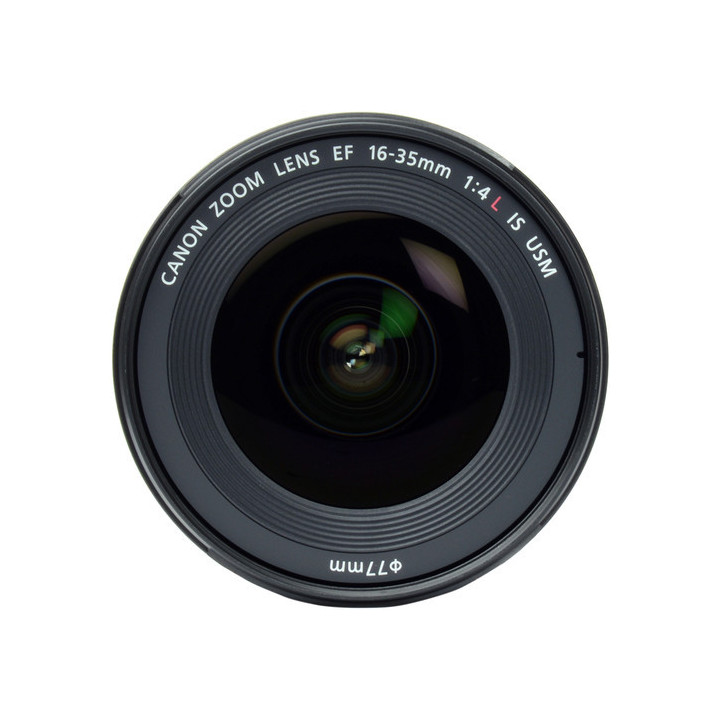

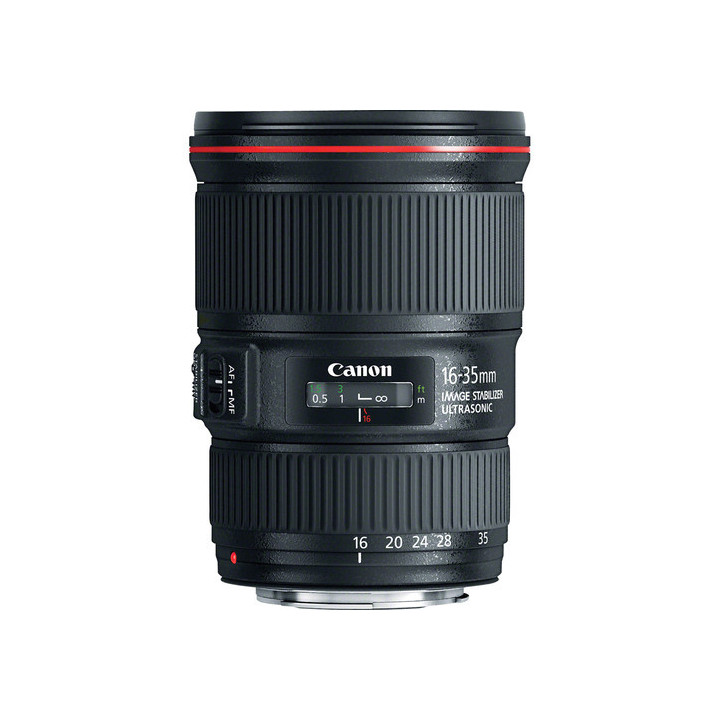

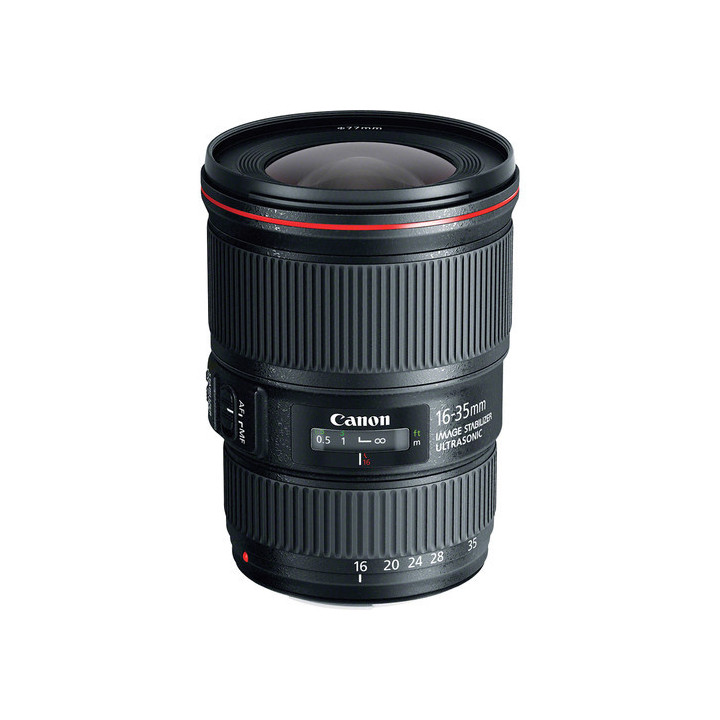

Canon EF 16-35mm f/4L IS USM Lens

The Canon EF 16-35mm f/4L IS USM lens is a wide-angle zoom featuring a constant maximum aperture of f/4 to deliver consistent performance throughout the zoom range. The optical design incorporates three aspherical elements, including one large-diameter aspherical element, as well as two UD (Ultra-low Dispersion) elements to minimise chromatic aberrations and contribute to high sharpness and edge-to-edge resolution. A fluorine coating has also been applied to the front and rear surfaces of the lens to reduce flare and ghosting in order to maintain colour neutrality and image contrast.
To facilitate working in challenging lighting conditions, an optical image stabiliser has been integrated into the lens design to minimise the appearance of camera shake blur by up to four effective shutter speed steps. For fast, smooth, and near-silent autofocus performance, a ring-type USM (Ultrasonic Motor) AF motor is used and benefits from an internal focusing design to maintain the overall length of the lens during use. Real-time manual focus can also be used for fine focusing accuracy down to 28 cm throughout the zoom range.
When paired with an optional protective filter, this lens also features a dust- and water-resistant construction to allow use in challenging weather conditions.
- The L-series wide-angle zoom lens is suitable for use on full-frame and APS-C sensors (where it provides a 35mm equivalent focal range of 25.6–56mm) and features a constant maximum aperture of f/4 for consistent performance throughout the zoom range.
- Two UD elements and three aspherical elements, including one large-diameter aspherical element, have been incorporated into the optical design to minimise aberrations and distortion throughout the zoom range.
- A fluorine coating has been applied to the front and rear surfaces of the lens to reduce ghosting in order to maintain image contrast and colour fidelity.
- An optical image stabiliser helps minimise the appearance of camera shake blur by up to four stops for improved handheld use in challenging lighting conditions.
- A ring-type USM AF motor, combined with an internal focusing design, enables fast and precise focusing performance.
- Real-time manual focus allows critical focusing accuracy, even in AF mode.
- When an optional 77mm protective filter is used, the lens offers dust and water resistance for use in challenging environmental conditions.
- A nine-blade circular diaphragm helps produce an aesthetically pleasing bokeh quality.
