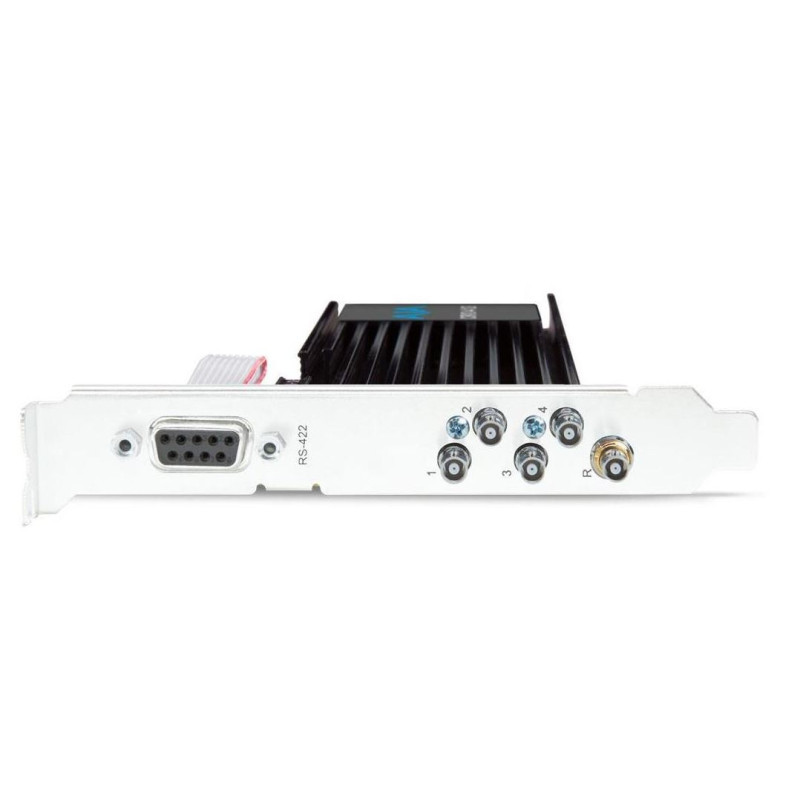

AJA 12G-SDI PCIe x4 CH I/O high bracket
Take control of the most demanding projects using the immense power of the new member of the Corvid range. Corvid 44 12G BNC is AJA's ultra-fast and compact 8-lane PCIe 3.0 I/O card with four full-size bidirectional 12G-SDI BNC connections, designed for today's most demanding audio and video workflows. Corvid 12G 44 BNC is available in multiple configurations with passive or active cooling options.
Whether you're working in HFR 8K/4K/Ultra HD, 2K/HD, SD, Deep Colour and/or HDR, discover the quality and peace of mind that Corvid 44 12G BNC brings to your projects. Supporting 10-bit 4:2:2 and 4:4:4 colour spaces, up to 12-bit, Corvid 44 12G BNC provides capture and output via 12G-SDI, which is also backwards compatible with 6G-SDI, 3G-SDI and 1.5G-SDI. The bidirectional 12G-SDI ports offer immense flexibility for simultaneous capture and transfer for a range of solutions.
12G-SDI multi-format PCIe I/O card
Corvid 44 12G BNC features four bidirectional 12G-SDI connectors with a reference input. 8K input or output is possible using four 12G-SDI cables and 4K/Ultra HD I/O can be achieved with a single 12G-SDI or 6G-SDI cable or four 3G-SDI cables. 2K/HD I/O can be achieved with a single SDI cable or dual-link SDI, whilst allowing simultaneous capture and monitoring via SDI. Corvid 44 12G BNC is available with active (fan) or passive (fanless) cooling, with both versions supporting RS422 and LTC input via connectors on the top edge of the card.
Format and frame rate support
Corvid 44 12G BNC supports 8K (8192 x 4320) and Ultra HD2 (7680 x 4320) workflows at high frame rates (HFR) up to 50/60p for the most demanding applications. Cinema frame rates of 23.98, 24, 47.95 and 48p are also supported in 8K, 4K and 2K. High frame rates are also available across multiple I/O including 4K HD, Ultra HD, 1080p and 720p up to 50/60p, making Corvid 44 12G BNC extremely flexible for your current and future needs.
Hardware keying
The integrated downstream hardware keyer enables easy overlay of graphics and images over input video in real time up to 4K.
Reference and LTC input
Corvid 44 12G BNC provides a switchable external LTC/Reference connection on the rear of the card.
RS-422
An integrated RS-422 connection is available as an "internal" connection via a connector on the Corvid 44 12G BNC. RS-422 enables control of external devices for precise frame-by-frame capture and transfer.




Specifications



Video formats

(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(UHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(Ultra HD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

Video formats (continued)

(HD) 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94

Digital video inputs

12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
6G-SDI, SMPTE-2081, 10-bit and 8-bit
3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
4K/Ultra HD 4:4:4 (4x BNC)
1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit, 10-bit and 8-bit
1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

Digital video outputs

12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
6G-SDI, SMPTE-2081, 10-bit and 8-bit
3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit
4K/Ultra HD 4:4:4 (4x BNC)
1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit, 10-bit and 8-bit
1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

SDI I/O

SDI connections are bidirectional
2K/HD, capture and monitoring are simultaneous
4K/Ultra HD with 12G-SDI, capture and monitoring are simultaneous
4K/Ultra HD with 3G-SDI, all four connections must be used for either input or output
8K/UHD2 with 12G-SDI, connections must be used for either input or output

Digital audio inputs

16 channels, 24-bit and 16-bit embedded SDI audio, 48 kHz sample rate, synchronous

Digital audio outputs

16 channels, 24-bit embedded SDI audio, 48 kHz sample rate, synchronous

Downstream keyer

Supports graphics with alpha channel over video, fill or framebuffer or framebuffer content over incoming video or fill up to Ultra HD/4K

Reference

Analogue black (1V) or composite sync (2 or 4V) or HD tri-level sync (1V) via 1 full-size BNC on PCIe bracket
Reference input is terminated at 75 ohms when Genlock is set to Ref In

Timecode

LTC timecode input via 2-pin connector on PCIe card or via full-size Ref In BNC connector (switchable) on PCIe bracket

Electrical interface

PCIe 3.0 8-lane

Machine control

RS-422, Sony 9-pin protocol via connector on PCIe card

Noise

<50 dBA (A-weighted at 1 m in free air)

Power

25 W typical, 32 W maximum
Internal ATX PC power connector

Safe operating temperature

0 to 40 degrees C (32 to 104 degrees F)

Safe storage temperature (Power off)

-40 to 60 degrees C (-40 to 140 degrees F)

Operating relative humidity

10-90% non-condensing

Operating altitude

<3,000 metres (<10,000 feet)

Dimensions (W x D x H)

0.75 x 7.0 x 4.75" (19 x 178 x 121 mm)

Weight

0.6 lbs (0.3 kg)



12G-SDI PCIe, x4 Ch I/O, Tall Bracket, w Fan, BNC
