AJA - OEM, HD/SD PCIe card, bundle with KL-BOX-LH-R0

AJA KONA-LHE+R0-S01 - OEM, HD/SD PCIe card, bundle with KL-BOX-LH-R0

1018512
0812321031386
AJA KONA-LHE+R0-S01 - OEM, HD/SD PCIe card, bundle with KL-BOX-LH-R0
AJA KONA-LHE+R0-S01 - OEM, HD/SD PCIe card, bundle with KL-BOX-LH-R0
OEM, HD/SD PCIe card, bundle with KL-BOX-LH-R0. Please contact Sales to discuss your cable options.
... learn more
Visuals Price
1,674.14 CHF VAT excl.

1,809.74 CHF Inc. VAT

Manufacturer price 1 762,25 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

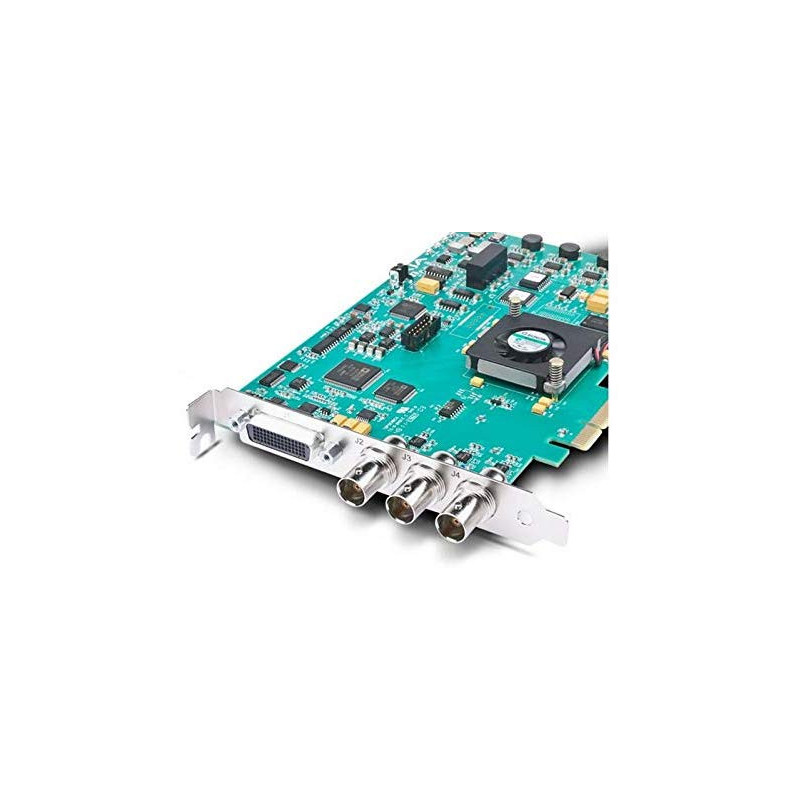

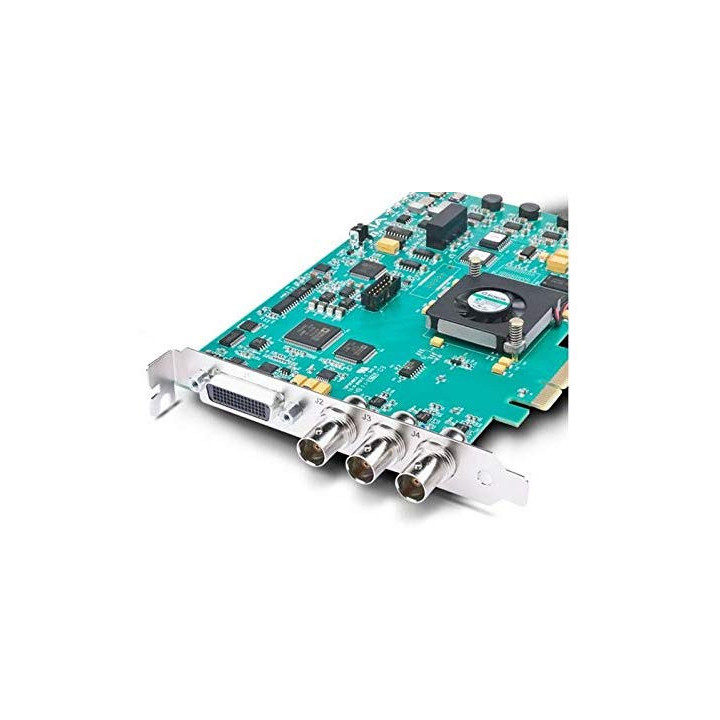

AJA HD/SD OEM PCIe card bundled with KL-Box-lH-R0
Versatile inputs/outputs
With support for uncompressed 10-bit or 8-bit video, KONA LHE Plus features one input and two outputs that can be independently configured for HD or SD. KONA LHe Plus also includes 2-channel AES digital audio, 8-channel embedded SDI digital audio, composite/S-video/SD/HD component analogue video inputs/outputs, 2-channel balanced analogue audio inputs/outputs, Genlock input and three BNCs that can be configured for analogue video input and output (HD or SD).
KONA LHe Plus supports RS-422 machine control via a 9-pin connector.
As KONA LHe Plus supports 12-bit HD analogue component input and output, devices with HD analogue output, such as VTRs and even games consoles, can be connected for various workflows.
AJA integrated hardware conversion
KONA LHe Plus features full broadcast-quality 10-bit HD to SD down conversion with motion adaptation, and 12-bit HD/SD component analogue output. The down converter enables KONA LHe Plus to connect to analogue SD devices for output. This can be used to verify framing and colour of SD versions whilst working in full HD resolution in your application, ensuring appropriate quality for multi-format deliverables. As the conversion is hardware-based, it is available continuously - during capture or playback.
Extensive software support
KONA LHe Plus is supported by an extensive list of professional editing, visual effects, graphics and other software, allowing the same KONA LHe Plus card to be used by many different applications on the same system. In addition, AJA provides several free applications that allow you to harness the power of the KONA LHe Plus card without having to run any specific software. This enables you to create unique workflows without unnecessarily tying up valuable resources.




Specifications



Video formats

525i 29.97
625i 25
720P 50, 59.94, 60
1080i 25, 29.97, 30
1080PsF 23.98, 24, 25, 29.97, 30
1080p 23.98, 24, 25, 29.97, 30

Digital video input

SD/HD SDI, SMPTE-259/292/296, 8 or 10 bit
Single link 4:2:2 (1 x BNC)

Analogue video input

Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
NTSC, NTSCJ, PAL
Component (3 x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
A/D 12 bit, 8x oversampling
+/- 0.2 dB to 5.0 MHz Y frequency response
+/- 0.2 dB to 1 MHz C frequency response
0.5% 2T pulse response
<1% Differential phase
<1% Differential gain
<1 ns Y/C delay inequality

Digital video output

SD SDI, SMPTE-259M, 10 bit
HD SDI, SMPTE-292/296, 10 bit

Analogue video output

Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adapter)
NTSC, NTSCJ, PAL
Component (3 x BNC)
HD: YPbPr, RGB
SD: YPbPr, RGB (component mode)
SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
D/A 12 bit, 8x oversampling
+/- 0.2 dB to 5.0 MHz Y frequency response
+/- 0.2 dB to 1 MHz C frequency response
0.5% 2T pulse response
<1% Differential phase
<1% Differential gain
<1 ns Y/C delay inequality

Digital audio input

8-channel SMPTE-259 embedded SDI audio, 24 bit, 48 kHz sampling frequency, Synchronous
2-channel AES/EBU audio, 24 bit, 48 kHz or 96 kHz sampling frequency, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KL-Box)

Analogue audio input

2-channel analogue audio, A/D 24 bit, 48 kHz sampling frequency, balanced (via 2 x XLR on breakout cable or optional KL-Box)
+24 dBu Digital full scale
+/- 0.2 dB from 20 to 20 kHz Frequency response

Digital audio output

8-channel SMPTE-259 embedded SDI audio, 24 bit, 48 kHz sampling frequency, Synchronous
2-channel AES/EBU audio, 24 bit, 48 kHz or 96 kHz sampling frequency, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KL-Box)

Analogue audio output

2-channel analogue audio D/A, 24 bit, 48 kHz sampling frequency, balanced (via 2 x XLR on breakout cable or optional KL-Box)
+24 dBu Digital full scale (0 dBFS)
Frequency response +/- 0.2 dB from 20 to 20 kHz
2-channel unbalanced output (via 2 RCA sockets on optional KL-Box)

Down conversion

Hardware 10 bit
Anamorphic: full screen
Letterbox: the image is reduced with black bars added at the top and bottom of the image area whilst preserving the aspect ratio
Crop: the image is cropped to fit the new screen size

Reference input

Analogue colour black (1V) or Composite sync (2 or 4V)
looping
75 ohms on optional KL-Box, terminated on supplied breakout cable

Machine control

RS-422, Sony 9-pin protocol (via breakout cable or optional KL-BOX)



OEM, HD/SD PCIe card, bundle with KL-BOX-LH-R0. Please contact Sales to discuss your cable options.
