Aja DVI to SDI with region of interest scaling

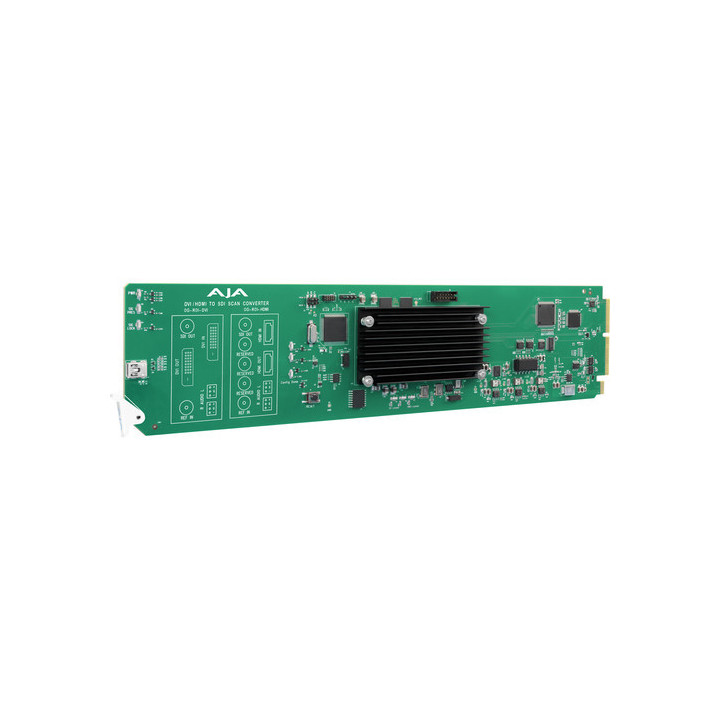

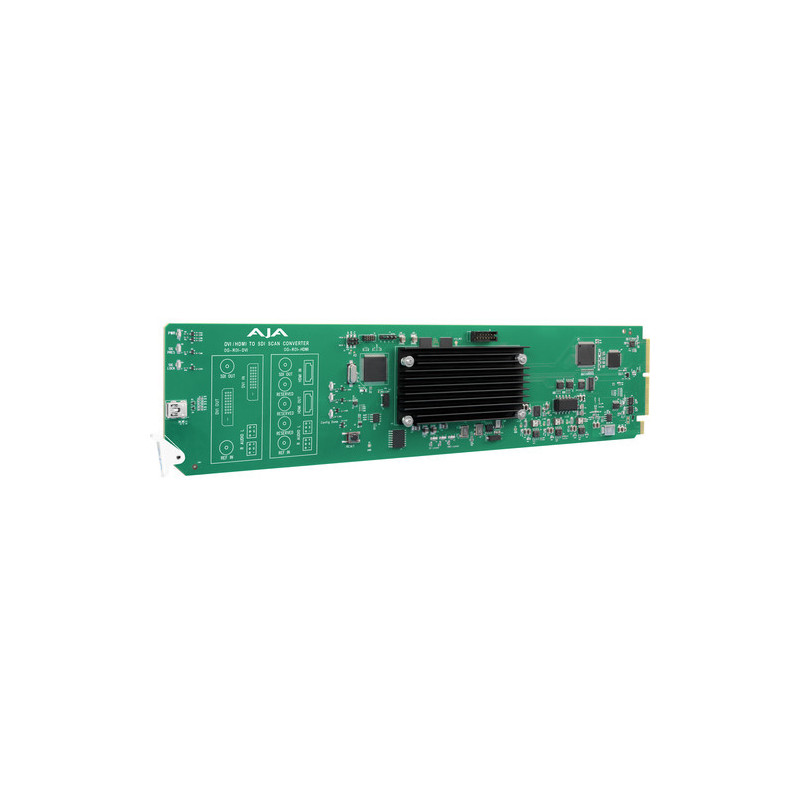

AJA's OG-ROI-DVI is an openGear card that enables very high quality conversion of computer and DVI signals to 3G-SDI baseband video. With incredible region of interest scaling as well as aspect and frame rate conversion, the OG-ROI-DVI addresses the growing need to properly integrate computer signals into the video world without sacrificing budget or space.
Connectivity
The OG-ROI-DVI uses a direct DVI loop-through, allowing it to be placed in-line to maintain a connection to a computer display whilst extracting to SDI. The reference input ensures that the SDI signal leaving the OG-ROI-DVI is locked for use throughout a production or installation.
Audio
The OG-ROI-DVI accepts 2-channel analogue audio from 2x 3-pin terminal block connectors. The audio source can be selected in the DashBoard software and is embedded into the SDI output. This enables computer audio to be integrated into the SDI signal for easy and synchronised routing.
openGear compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of frame-based products.
Flexible I/O
The modular rear panel enables custom I/O connections per card (included with individual cards).
Built-in security
The optional redundant power supply provides a secondary power source in the event of main power supply failure.
Ethernet access
A standard Ethernet connection provides access to the frame via the Dashboard application for global frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
|
|
Specifications
|
|
|
Video input formats
|
Computer signals:
WUXGA (1920 x 1200) 60 Hz max
VGA (640 x 480) minimum
Video signals:
(HD) 1920 x 1080i 50, 59.94
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(SD) 625i, 525i
(SD) 580p, 480p
|
|
Video output formats
|
(HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 25
(SD) 525i 29.97
|
|
Colour range
|
Full
SMPTE
|
|
Reference source
|
Free-run
Ext card ref
OG frame ref 1
OG frame ref 2
|
|
Reference input
|
Supported reference video inputs include:
1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i colour black
525i colour black
75 ohm termination
|
|
Video input
|
1x DVI input connector (with embedded audio, up to 8 channels)
|
|
Video outputs
|
DVI: 1x HDMI loop-through connector (with embedded audio, up to 8 channels)
SDI: 3G-SDI, SMPTE-259/292/424, 1x BNC
|
|
Audio inputs
|
2-channel balanced analogue audio inputs, 2x 3-pin terminal block connectors
|
|
Audio output
|
Embedded SDI audio, 24-bit, 2-channel or 8-channel
|
|
User interface
|
openGear DashBoard network control software via Windows, macOS or Linux
|
|
Power supply
|
Compatible with openGear frames, 12.0 watts maximum per card
|
|
Environment
|
Safe operating temperature range: 0 to 40 °C (32 to 104 °F)
Safe storage temperature (power off): -40 to 60 °C (-40 to 140 °F)
Operating relative humidity: 10-90% non-condensing
Operating altitude: <3000m(<10000')
|
|
Weight
|
0.5 lb (0.23 kg)
|
